1591STCL

SKU: 1591STCL

BRAND: Hammond

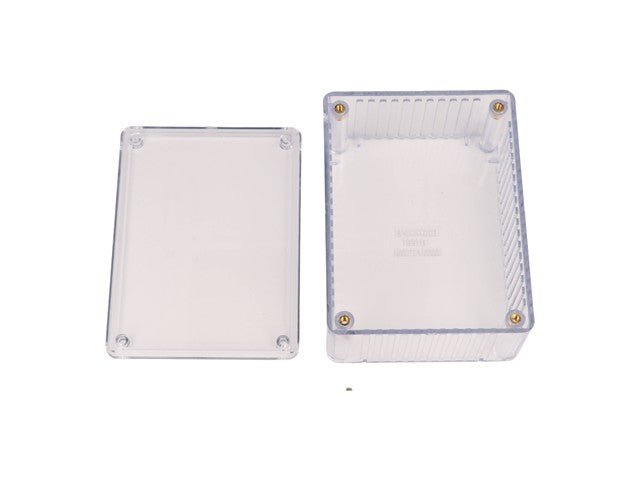

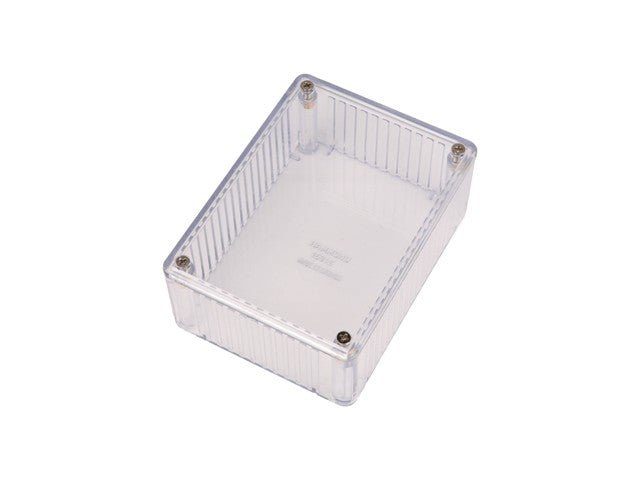

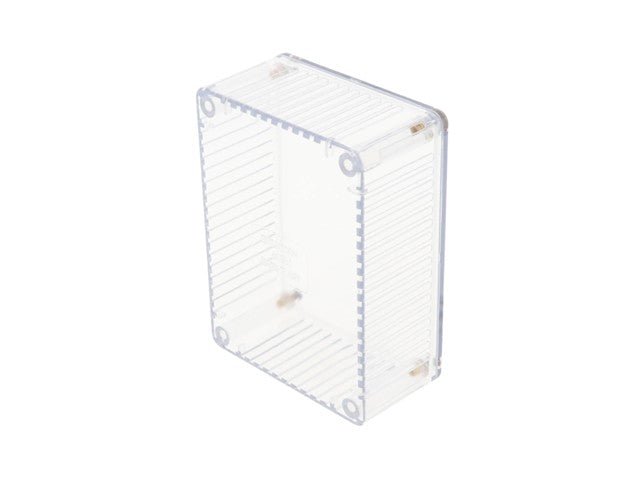

1591S Transparent Clear Enclosure

Features

  • Ideally suited for mounting printed circuit boards
  • Perfect for applications where parts, sensors or indicators need to be visible
  • Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays
  • Crystal Clear version is almost totally transparent
  • IR Red version is almost totally transparent to infrared devices
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0)
  • Lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings

Specifications

Product Type Polycarb Enclosure
Series 1591T
Body Material Polycarbonate
External Dimensions 110.1 x 82.2 x 44 mm (With Lid)
External Length 110.1 mm
External Width 82.2 mm
External Height 44 mm (With Lid)
Internal Dimensions 103.77 x 75.87 x 39.9 mm
Internal Length 103.77 mm
Internal Width 75.87 mm
Internal Height 39.9 mm
Colour Clear
IP Rating IP54
Lid Colour Clear
Flame Rating UL94 V-0
