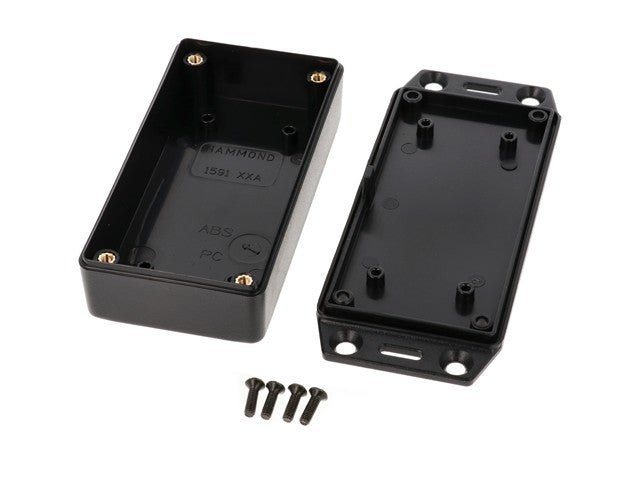

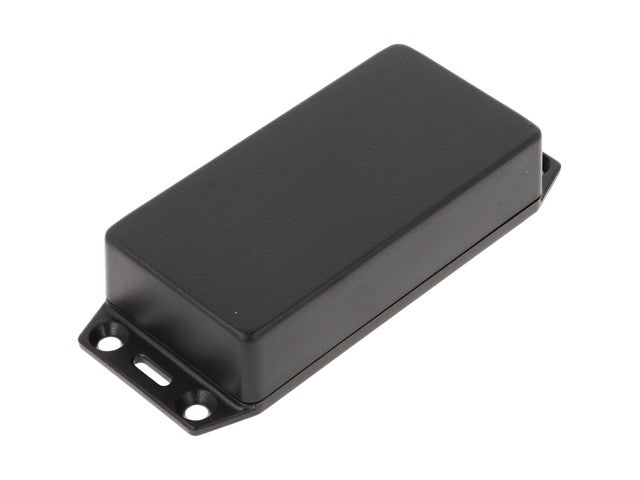

ABS Plastic • with Flanged Lid • 124.62 x 51.4 x 25 mm (With Lid) • Black
Features
- Ideally suited for mounting printed circuit boards horizontally
- Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides
- Strong tongue and groove lid to box construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Lid and box both contain - molded in PC board standoffs
- Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0)
- Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic
- Stocked in satin texture black and grey
- On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
- Economy versions are assembled with self tapping screws into fully plastic posts
- Black and transparent blue enclosures include black screws, gray enclosures include nickel plated screws
Specifications
Product Type |
General Purpose Flanged Enclosure |
Series |
1591XX |
Body Material |
ABS Plastic |
External Dimensions |
124.62 x 51.4 x 25 mm (With Lid) |
External Length |
124.62 mm |
External Width |
51.4 mm |
External Height |
25 mm (With Lid) |
Internal Dimensions |
95.65 x 46.15 x 21 mm |
Internal Length |
95.65 mm |
Internal Width |
46.15 mm |
Internal Height |
21 mm |
Colour |
Black |
IP Rating |
IP54 |
Lid Colour |
Black |
Flame Rating |
UL94 V-0 |
Protection Features |
Flame Retardant |
