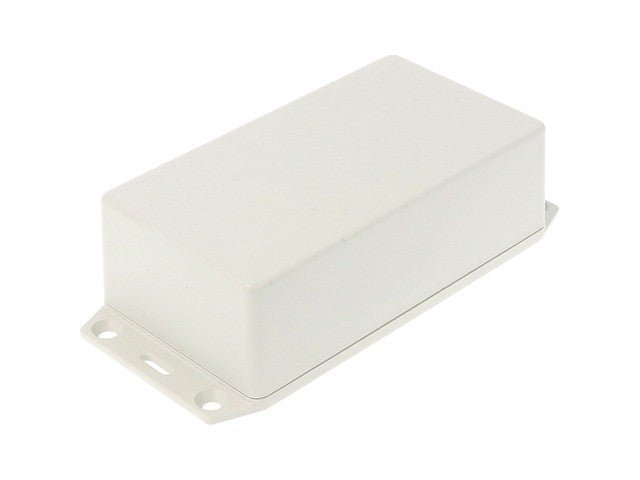

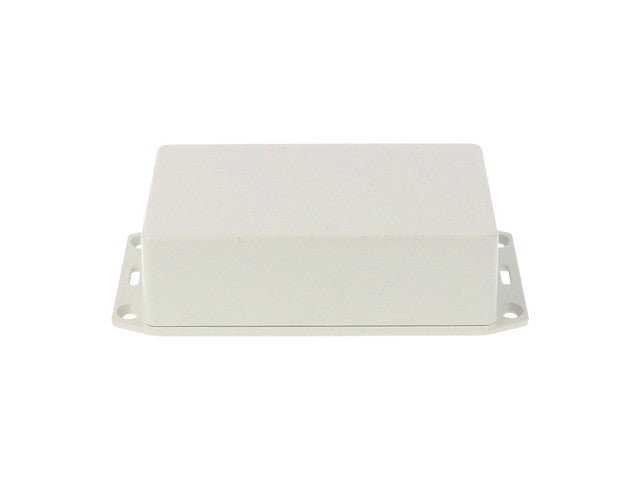

ABS Enclosure 121X66X37MM Flanged Lid
ABS Enclosure Flanged Lid
Feature(s)
- Ideally suited for mounting printed circuit boards horizontally.
- Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides.
v
- Strong tongue and groove lid to box construction provides protection against access of dust and splashing water.
- Designed to meet IP54.

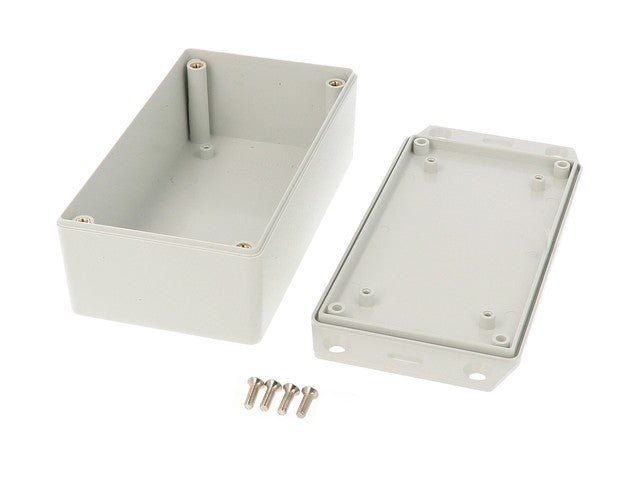

- Lid and box both contain - molded in PC board standoffs.
- Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic.
- Stocked in satin texture black and grey.
- On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
Additional Information
| Device |
Enclosure |
| Type |
ABS | Flanged Lid |
| Body Material |
ABS Plastic |
| Dimensions |
121 x 66 x 37mm |
Discover the 1591XXCFLGY ABS Enclosure, designed for durable protection and easy installation of printed circuit boards. With its IP54 rating and secure flanged lid, it safeguards against dust and splashes, making it ideal for various applications. Crafted from flame-retardant ABS plastic, this enclosure combines strength and versatility, ensuring your components stay safe and accessible. Upgrade your project with this reliable enclosure today!
