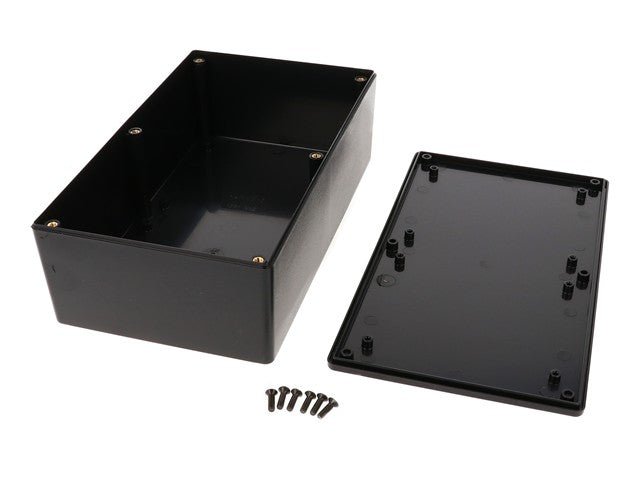

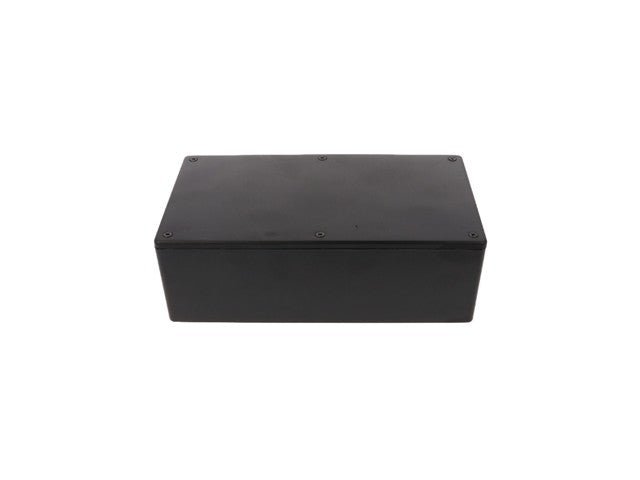

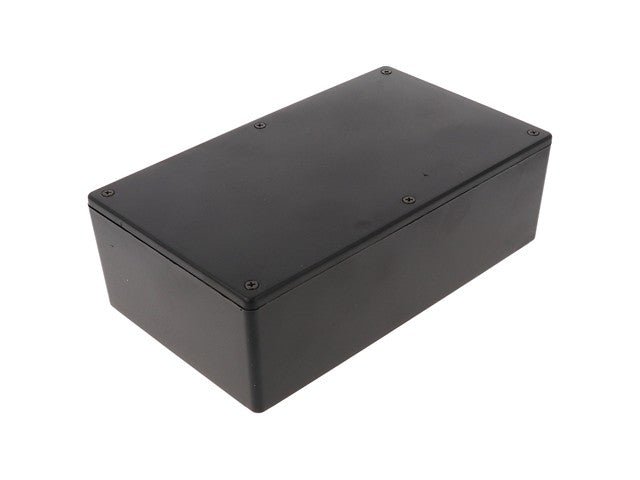

Flame Retardent ABS Enclosure 193.41 x 113.41 x 61 mm (With Lid) In Black Colour it is designed for IP54
Features
- Ideally suited for mounting printed circuit boards horizontally
- Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides
- Strong tongue and groove lid to box construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Lid and box both contain - molded in PC board standoffs
- Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0)
- Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic
- Stocked in satin texture black and grey
- On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
- Economy versions are assembled with self tapping screws into fully plastic posts
- Black and transparent blue enclosures include black screws, gray enclosures include nickel plated screws
Specifications
| Product Type |
General Purpose Project Box |
| Series |
1591XX |
| Body Material |
ABS Plastic |
| External Dimensions |
193.41 x 113.41 x 61 mm (With Lid) |
| External Length |
193.41 mm |
| External Width |
113.41 mm |
| External Height |
61 mm (With Lid) |
| Internal Dimensions |
185.65 x 89.77 x 57 mm |
| Internal Length |
185.65 mm |
| Internal Width |
89.77 mm |
| Internal Height |
57 mm |
| Colour |
Black |
| IP Rating |
IP54 |
| Lid Colour |
Black |
| Flame Rating |
UL94 V-0 |
| Protection Features |
Flame Retardant |
