BRAND: Hammond

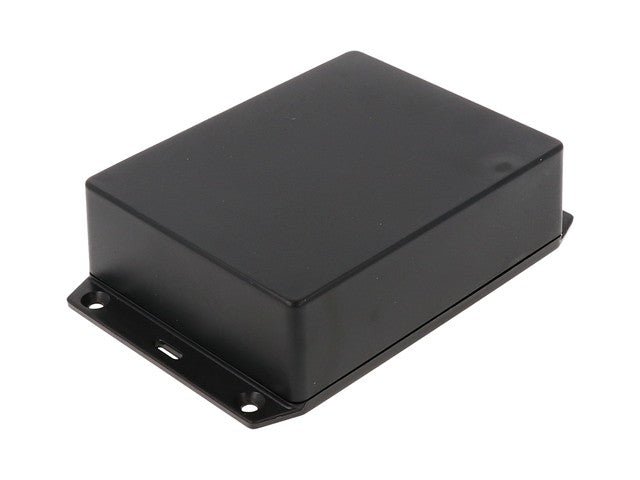

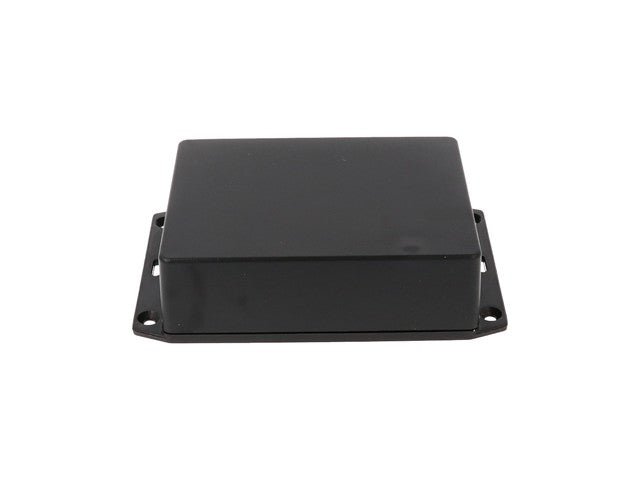

Enclosure Plastic Black 146.17 x 95.91 x 38 mm (With Lid) With Flanged Lid


  • Ideally suited for mounting printed circuit boards horizontally
  • Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides
  • Strong tongue and groove lid to box construction provides protection against access of dust and splashing water
  • Designed to meet IP54

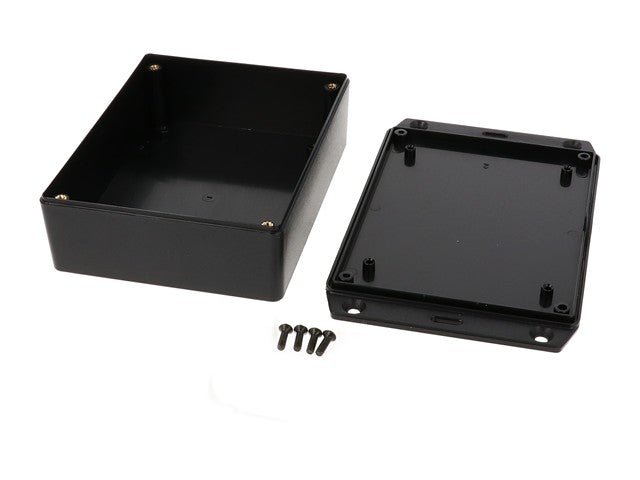

  • Lid and box both contain - molded in PC board standoffs
  • Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0)
  • Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic
  • Stocked in satin texture black and grey
  • On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
  • Economy versions are assembled with self tapping screws into fully plastic posts
  • Black and transparent blue enclosures include black screws, gray enclosures include nickel plated screws


Product Type General Purpose Flanged Enclosure
Series 1591XX
Body Material ABS Plastic
External Dimensions 146.17 x 95.91 x 38 mm (With Lid)
External Length 146.17 mm
External Width 95.91 mm
External Height 38 mm (With Lid)
Internal Dimensions 116.3 x 89.75 x 34 mm
Internal Length 116.3 mm
Internal Width 89.75 mm
Internal Height 34 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94 V-0
Protection Features Flame Retardant
