1592ETSDBK

SKU: 1592ETSDBK

BRAND: Hammond

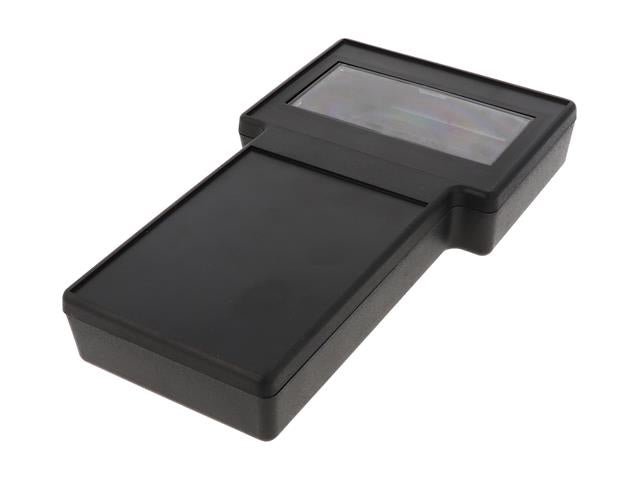

ABS Hand Held Enclosure with Solid Display Area

ABS Hand Held Enclosure

Feature(s)

  • Perfect for instrument or mobile data enclosures requiring a keypad and display.
  • Available with either a solid display area or an opening with a clear lens.
    • Solid display area is 122mm x 85mm (4.8” x 3.4”) and will accommodate display boards up to 118mm x 60mm (4.6” x 2.37”).
    • Clear polycarbonate lens 102mm x 45mm (4.0” x 1.77”) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame.
    • The lens fits snugly into the case and provides protection from dirt and dust.
  • Molded from flame retardant ABS plastic with a UL flammability rating of UL94 V-0 in black or grey.
  • The back of the case has been designed to accept a magnetic strip or hook and loop fabric mounting tab, available separately.
  • The display area has been insert tooled in order to provide the capability of custom molding a low-cost display area to specific requirements.

Specifications

Size L x W x H 5.1 in x 9.21 in x 1.35 in
(130 mm x 234 mm x 34 mm)
Shipping Weight 0.52 lbs (0.24 kg)
Packaging Type shrink wrap
Material ABS Plastic
Color Black
Flame Rating UL94 V-0
IP Rating IP54
Product Category Enclosures
Type Hand held, T-case
Max. P.C. Board Length (mm) 117.58
Max. P.C. Board Width (mm) 222.58

Downloads

Additional Information

Device Enclosure
Type ABS | Hand Held
