1593KGY

SKU: 1593KGY

BRAND: Hammond

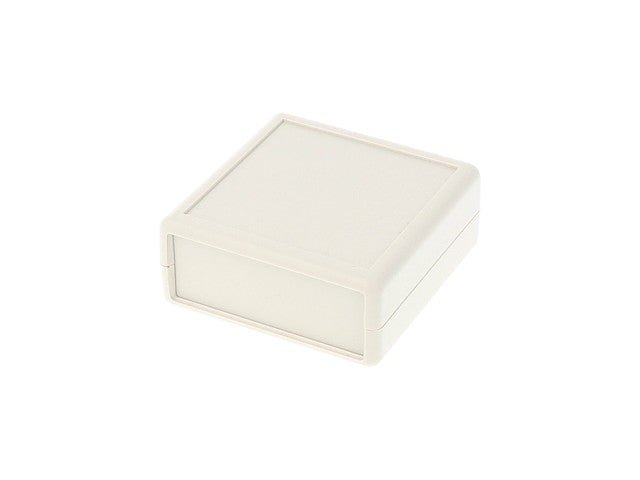

Instrument Type Hand Held Enclosure • ABS Plastic • 65x65x27mm • Grey

Instrument Type Hand Held Enclosure

Feature(s)

  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
  • Ergonomically designed for a comfortable fit into the user’s hand.
  • Designed to meet IP54 ratings.
  • Recessed top for membrane display or pad.
  • Units with battery door use our long life "three snap" door.
  • Lap joint construction provides protection against dust accumulation and splashing water.
  • Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture.
  • Unit is secured with self tapping screws.
  • Black and transparent blue enclosures include black screws, grey includes nickel finish screws.

Specifications

Size L x W x H 2.6 in x 2.6 in x 1.1 in
(66 mm x 66 mm x 28 mm)
Shipping Weight 0.11 lbs (0.05 kg)
Packaging Type shrink wrap
Material ABS Plastic
Color Light Gray
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type General purpose
Max. P.C. Board Length (mm) 56.61
Max. P.C. Board Width (mm) 57.66

Downloads

Additional Information

Device Enclosure
Type Instrument Type | Hand Held
