1593LBK - Plastic Enclosures - 623980808611

1593LBK

Name: 1593LBK - Communica [Part No: 1593LBK]
Brand: Hammond
SKU: 1593LBK
Price: 90 ZAR
Availability: InStock

SKU: 1593LBK

BRAND: Hammond

R 103.50_{(inc VAT)}
R 90.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Handheld Enclosure

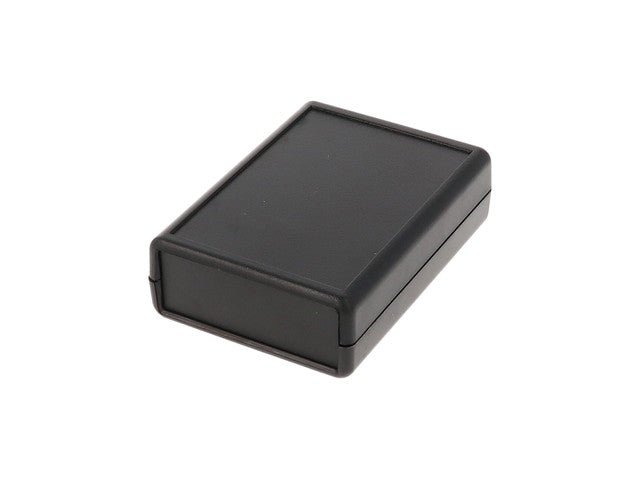

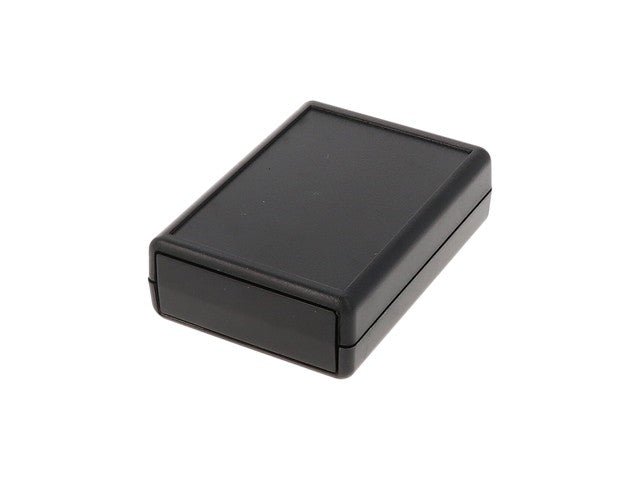

ABS Hand Held Black Enclosure 92X66X28MM

ABS Black Hand Held Enclosure

Feature(s)

Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Ergonomically designed for a comfortable fit into the user’s hand.
Designed to meet IP54 ratings.
Recessed top for membrane display or pad.

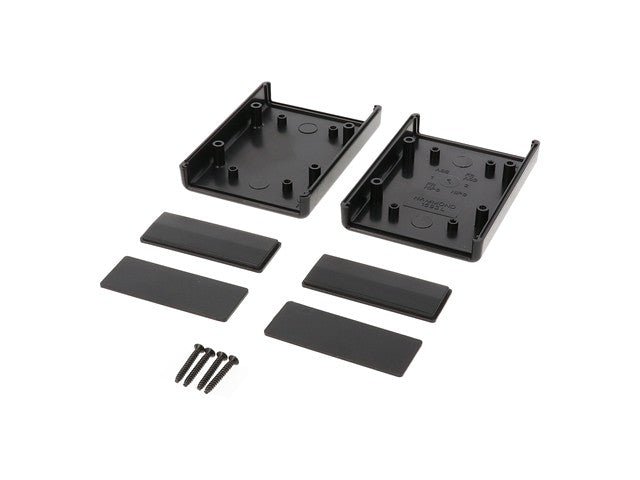

Units with battery door use our long life "three snap" door.
Lap joint construction provides protection against dust accumulation and splashing water.
Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture.

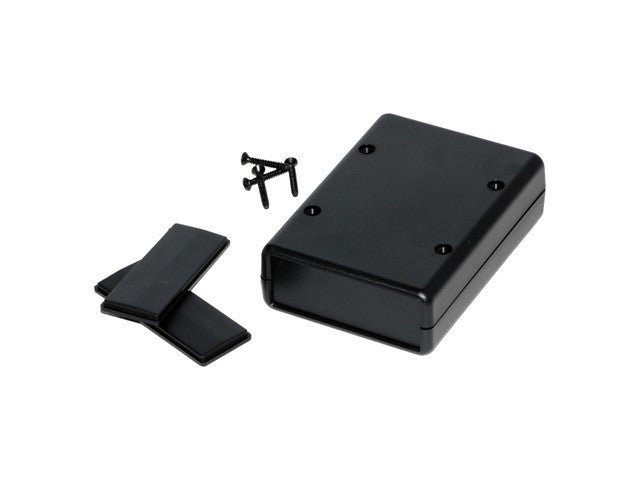

Unit is secured with self tapping screws.
Black and transparent blue enclosures include black screws, grey includes nickel finish screws.

Specifications

Size L x W x H	2.6 in x 2.6 in x 1.1 in (66 mm x 66 mm x 28 mm)
Shipping Weight	0.11 lbs (0.05 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Light Gray
Flame Rating	UL94 HB
IP Rating	IP54
Product Category	Enclosures
Type	General purpose
Max. P.C. Board Length (mm)	56.61
Max. P.C. Board Width (mm)	57.66

Downloads

Datasheet - 1593LBK

Additional Information

Device	Enclosure
Type	ABS \| Black \| Hand Held

Discover the 1593LBK ABS Hand Held Enclosure, expertly designed for mounting printed circuit boards. Its ergonomic shape ensures comfort during use, while the IP54 rating protects against dust and splashes. Available in sleek black, this durable enclosure is perfect for your electronic projects, providing both style and functionality.
