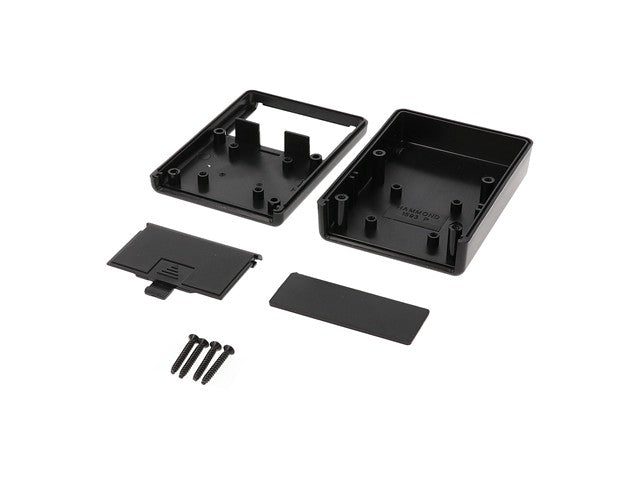

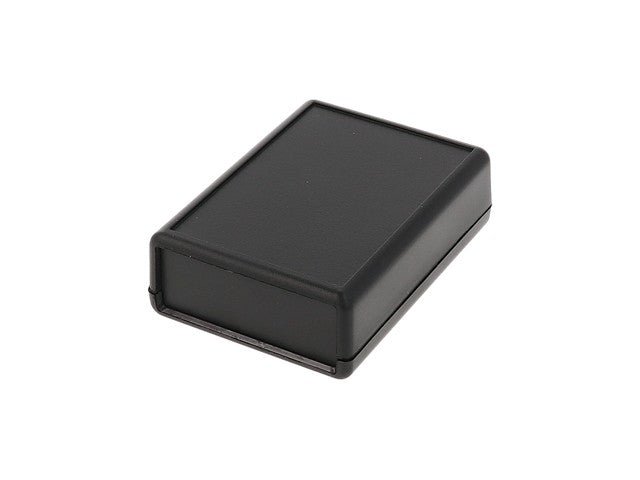

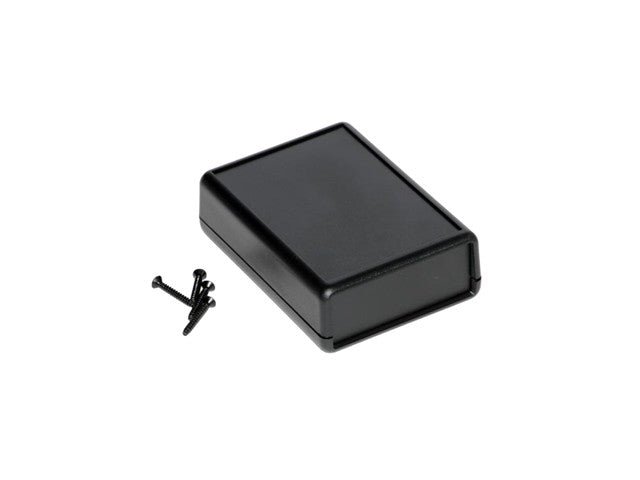

1593PBK

SKU: 1593PBK

BRAND: Hammond


Instrument type Hand Held Enclosure • ABS Plastic • with Battery Compartment • 90 x 65.5 x 27.9 mm • Black

Features

  • Electronic instrument enclosures, ideally suited for mounting printed circuit boards
  • Ergonomically designed for a comfortable fit into the user’s hand
  • Designed to meet IP54 ratings
  • Recessed top for membrane display or pad
  • Units with battery door use our long life "three snap" door
  • Lap joint construction provides protection against dust accumulation and splashing water
  • Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture
  • Unit is secured with self tapping screws
  • Black and transparent blue enclosures include black screws, grey includes nickel finish screws.

Specifications

Product Type Hand-Held Enclosure
Series 1593
Body Material ABS Plastic
External Dimensions 90 x 65.5 x 27.9 mm
External Length 90 mm
External Width 65.5 mm
External Height 27.9 mm
Internal Dimensions 49.86 x 60.89 x 21.8 mm
Internal Length 49.86 mm
Internal Width 60.89 mm
Internal Height 21.8 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
Protection Features Battery Door, Dust and Splashing Water
