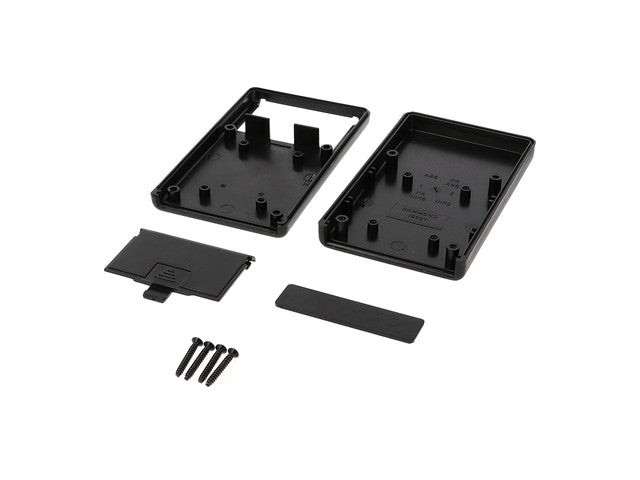

Enlcosure ABS Hand Held 112x66x21mm Black Battery Door IP54
ABS Hand Held Enlcosure
Feature(s)
- Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Ergonomically designed for a comfortable fit into the user’s hand.
- Designed to meet IP54 ratings.
- Recessed top for membrane display or pad.
- Units with battery door use our long life "three snap" door.
- Lap joint construction provides protection against dust accumulation and splashing water.
- Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture.
- Unit is secured with self tapping screws.
- Black and transparent blue enclosures include black screws, grey includes nickel finish screws.
Specifications
- Size L x W x H : 112 mm x 66 mm x 21 mm
- Shipping Weight : 0.14 lbs (0.06 kg)
- UNSPSC : 39121301
- UPC : 62398079596
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Black
- Flame Rating : UL94-HB
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : General purpose
