1594AWBK - Plastic Enclosures - 623980564173

1594AWBK

Name: 1594AWBK - Communica [Part No: 1594AWBK]
Brand: Hammond
SKU: 1594AWBK
Price: 236 ZAR
Availability: InStock

SKU: 1594AWBK

BRAND: Hammond

R 271.40_{(inc VAT)}
R 236.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 ABS Plastic

Polystyrene Enclosure 56X56X40 Black Water-Tight

Heavy Duty Enclosure

Feature(s)

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Also suited for vertical or horizontal mounting of printed circuit boards (using optional P.C. card guides - see accessories below).
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

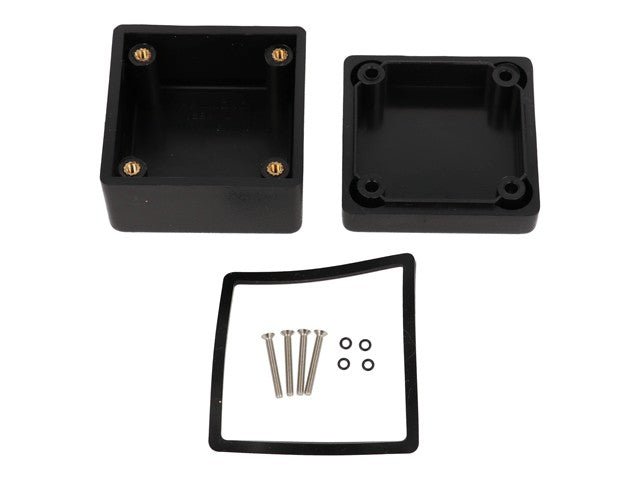

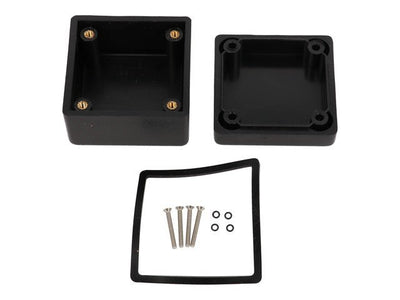

Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
Designed to meet IP54.
Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Stocked in black with matte textured finish.

Specifications

Size L x W x H	2.2 in x 2.2 in x 1.1 in (56 mm x 56 mm x 28 mm)
Shipping Weight	0.13 lbs (0.06 kg)
UNSPSC	39121301
UPC	623980564173
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP65
Product Category	Enclosures
Type	Thick wall, water-tight

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Heavy Duty

Introducing the 1594AWBK Heavy Duty Polystyrene Enclosure, designed for maximum protection and durability. With its IP65 rating and flame-retardant ABS plastic, this rugged black enclosure safeguards your electronic components from moisture and heat. Perfect for mounting printed circuit boards, its thick walls and secure countersunk lid ensure reliable performance in any application. Elevate your project with this dependable enclosure today!
