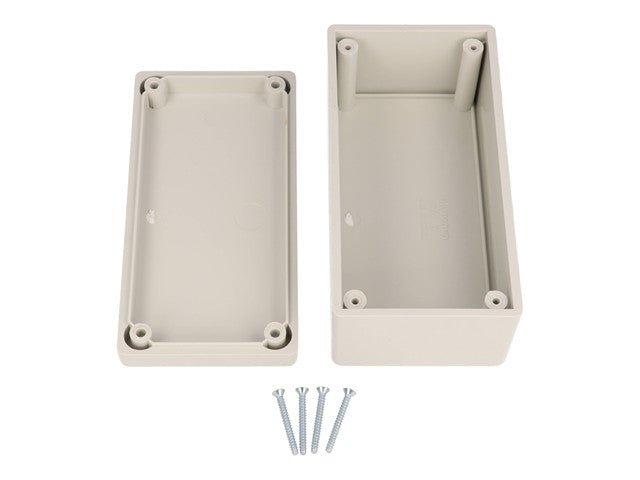

Polystyrene Enclosure 131X66X55 Grey Heavy Duty
Feature(s)
- Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
- Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
- Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
- On standard and water-tight versions, countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
- Economy version is molded in general purpose ABS plastic.
- Economy version utilizes self tapping screws into plastic posts (no brass inserts).
- Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
- Water-tight versions are rated IP66.
- Stocked in black and grey with matte textured finish.
- For EMI/ RFI shielded versions, try “1594RFI” or “1594R.”
Specifications
- Size L x W x H : 132 mm x 66 mm x 55 mm
- Shipping Weight : 0.28 lbs (0.13 kg)
- UNSPSC : 39121301
- UPC : 62398054535
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Light Gray
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : Thick wall, general purpose
Downloads
Additional Information
| Sub Group |
Heavy Duty |
| Group |
Plastic Enclosure |
| Model |
1594DSGY |
| Device |
Heavy Duty |
Discover the robust 1594DSGY Polystyrene Enclosure, designed for durability and versatility. With a heavy-duty, flame-retardant ABS plastic construction and IP54 rating, it ensures optimal protection for your electronic components. Perfect for repetitive assembly, this enclosure combines strength with ease of use, making it an essential choice for any project.
