1594EBK - Plastic Enclosures - 623980563770

1594EBK

Name: 1594EBK - Communica [Part No: 1594EBK]
Brand: Hammond
SKU: 1594EBK
Price: 350 ZAR
Availability: InStock

SKU: 1594EBK

BRAND: Hammond

R 402.50_{(inc VAT)}
R 350.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: ABS Plastic

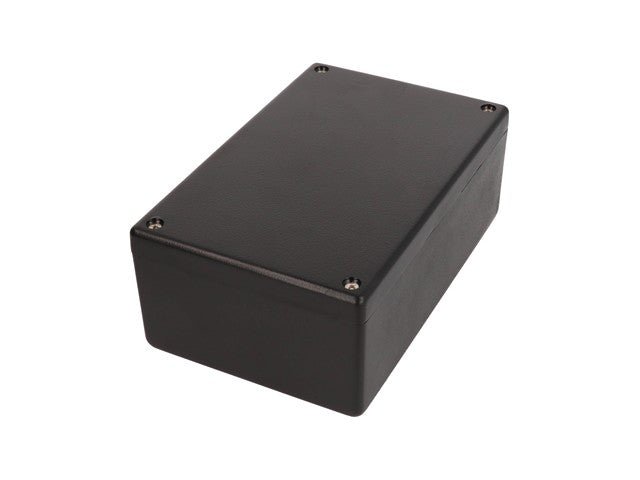

Polystyrene Enclosure 167X107X65 Black Heavy Duty

ABS Plastic Heavy Duty Enclosure

Feature(s)

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Also suited for vertical or horizontal mounting of printed circuit boards (using optional P.C. card guides - see accessories below).
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).

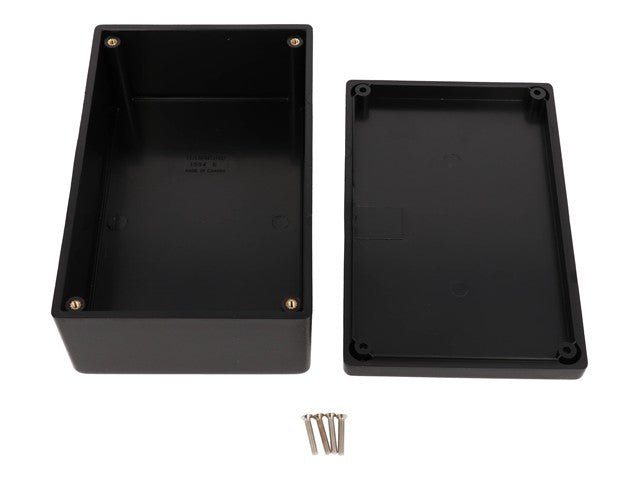

Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
Designed to meet IP54.
Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Stocked in black with matte textured finish.

Specifications

Size L x W x H	6.6 in x 4.2 in x 2.1 in (168 mm x 107 mm x 53 mm)
Shipping Weight	0.63 lbs (0.29 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Thick wall, general purpose

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	ABS Plastic \| Heavy Duty

Discover the 1594EBK heavy-duty polystyrene enclosure, designed for durability and versatility. With a flame-retardant ABS plastic construction and superior RFI/EMI shielding, it's perfect for protecting your printed circuit boards. Its rugged design ensures secure mounting, making it ideal for both vertical and horizontal applications. Elevate your project with this reliable, IP54-rated enclosure that combines strength and functionality.
