1594ESGY

SKU: 1594ESGY

BRAND: Hammond

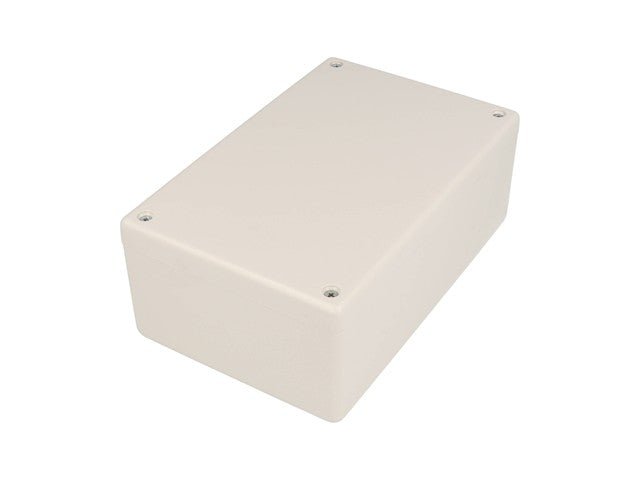

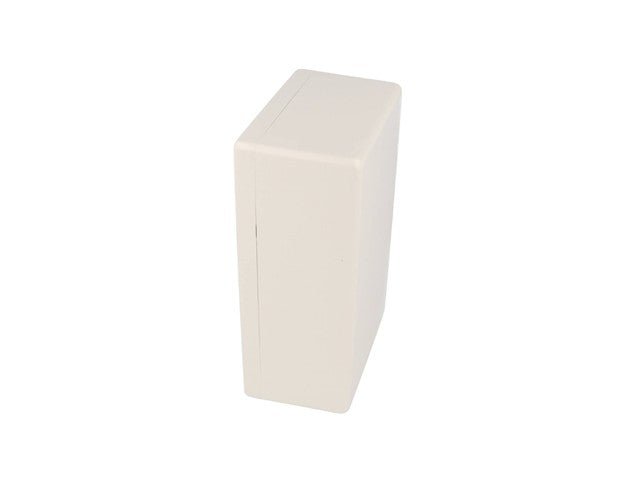

Heavy Duty Enclosure • Polystyrene Plastic 168 mm x 107 mm x 53 mm Grey

Heavy Duty Enclosure

Feature(s)

  • Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
  • Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
  • Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).

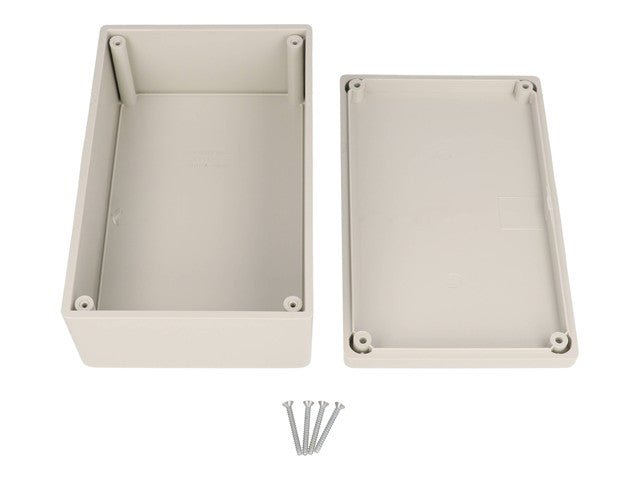

  • On standard and water-tight versions, countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
  • Economy version is molded in general purpose ABS plastic.
  • Economy version utilizes self tapping screws into plastic posts (no brass inserts).
  • Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
  • Water-tight versions are rated IP66.
  • Stocked in black and grey with matte textured finish.

Specifications

Size L x W x H 6.6 in x 4.2 in x 2.1 in
(168 mm x 107 mm x 53 mm)
Shipping Weight 0.56 lbs (0.25 kg)
UNSPSC 39121301
UPC 623980545363
Packaging Type shrink wrap
Material ABS Plastic
Color Light Gray
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type Thick wall, general purpose

Downloads

Additional Information

Device Enclosure
Type Heavy Duty
