1594EWGY

Name: 1594EWGY - Communica [Part No: 1594EWGY]
Brand: Hammond
SKU: 1594EWGY
Price: 360 ZAR
Availability: InStock

SKU: 1594EWGY

BRAND: Hammond

In Stock
R 414.00_{(inc VAT)}
R 360.00_{(ex VAT)}

Collections: Enclosures

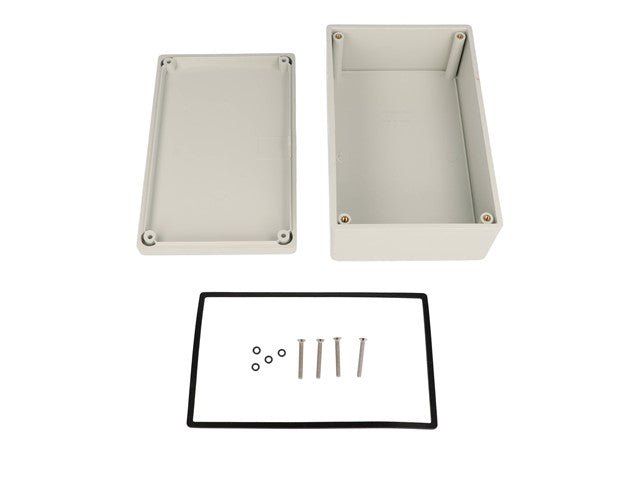

Polystyrene Enclosure 167x107x65mm Grey Watertight

Polystyrene Grey Watertight Enclosure

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Also suited for vertical or horizontal mounting of printed circuit boards (using optional P.C. card guides - see accessories below).
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
Designed to meet IP54.
Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Stocked in black with matte textured finish.

Device	Enclosure
Type	Polystyrene \| Grey \| Watertight
Body Material	Polystyrene Plastic
Size	167m x 107m x 65mm
Base Colour	Grey
Degree of Protection	IP54
