1595CGY

Name: 1595CGY - Communica [Part No: 1595CGY]
Brand: Hammond
SKU: 1595CGY
Price: 320 ZAR
Availability: InStock

SKU: 1595CGY

BRAND: Hammond

R 368.00_{(inc VAT)}
R 320.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 ABS Plastic

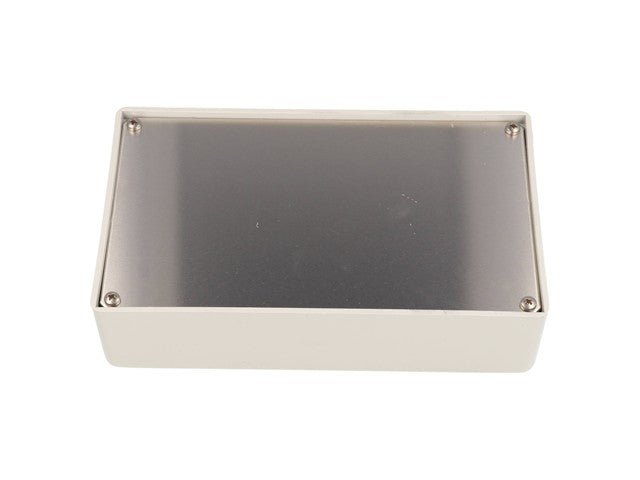

ABS instrument 116 X 96 X REAR 58 Grey

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Standard versions are molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Economy versions are molded from general purpose ABS plastic (UL94-HB).

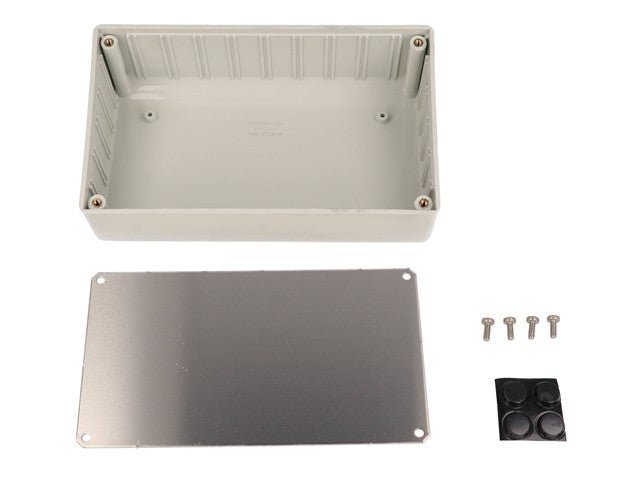

Two piece construction. Integral card guides accept 1.5 mm (0.062”) P.C. cards. 0.20” diameter stand off bosses in the base for supporting various subassemblies.
Integral brass bushings with four M3 x 0.5” x 8 mm (0.31”) Phillips pan head screws hold recessed panel into sloping front of case.
1.01 mm (0.04”) aluminum panel with paper on one side.
Four self-adhesive feet included.
Stocked in black and grey.

Specifications

Size L x W x H : 161 mm x 96 mm x 58 mm
Shipping Weight : 0.44 lbs (0.20 kg)
UNSPSC : 39121301
UPC : 62398056420
REACH Compliant : Yes
RoHS Compliant : Yes
Material : ABS Plastic
Color : Light Gray
Flame Rating : UL94 V-0
IP Rating : IP54
Packaging : shrink wrap
Product Category : Enclosures
Type : Sloped Console

Downloads

Datasheet

Additional Information

Sub Group	Sloping Console
Group	Plastic Enclosure
Model	1595CGY
Device	Sloping Console

Discover the 1595CGY sloped console enclosure, expertly crafted from flame-retardant ABS plastic for superior durability and safety. Perfect for securely housing printed circuit boards, this sleek light gray design features integral card guides and brass bushings for easy assembly. Elevate your project with this reliable, compliant enclosure today!
