1598BBK

SKU: 1598BBK

BRAND: Hammond

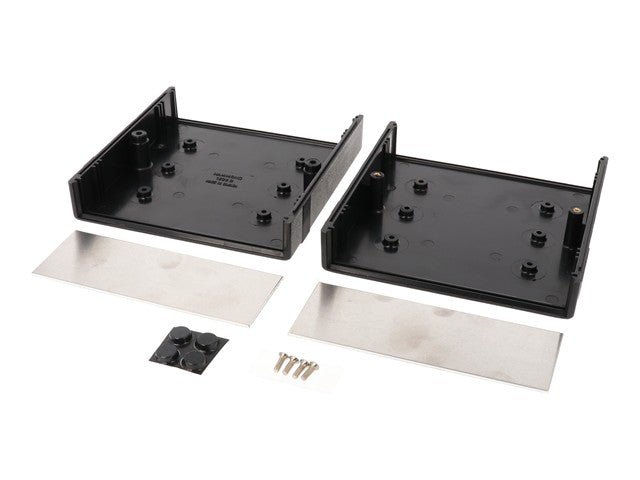

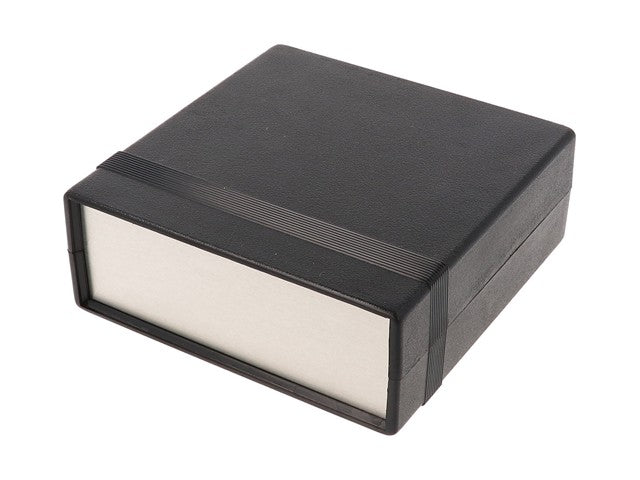

Instrument Enclosure • Flame Retardent ABS Plastic • with Aluminium End Panels • 134.3 x 135.2 x 51 mm • Black

Features

  • Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards
  • Molded from flame retardant abs plastic (material carries a ul flammability rating of 94V-0)
  • Designed to meet IP54
  • Two sets of vertical 1.5 mm (0.062") P.C. Board guides are molded into case halves front and rear
  • Front and rear panels are 1.6 mm (0.064") brushed aluminium with protective paper on one side
  • Enclosure halves are secured with m3 x 0.5" x 10 mm (0.39") phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
  • Integral horizontal P.C. Card mounts on eurocard centers

Specifications

Product Type Instrument Enclosure
Series 1598
Body Material ABS Plastic
External Dimensions 134.3 x 135.2 x 51 mm
External Length 134.3 mm
External Width 135.2 mm
External Height 51 mm
Internal Dimensions 123.3 x 125.9 x 45.5 mm
Internal Length 123.3 mm
Internal Width 125.9 mm
Internal Height 45.5 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94 V-0
