1598CSGYPBK

SKU: 1598CSGYPBK

BRAND: Hammond

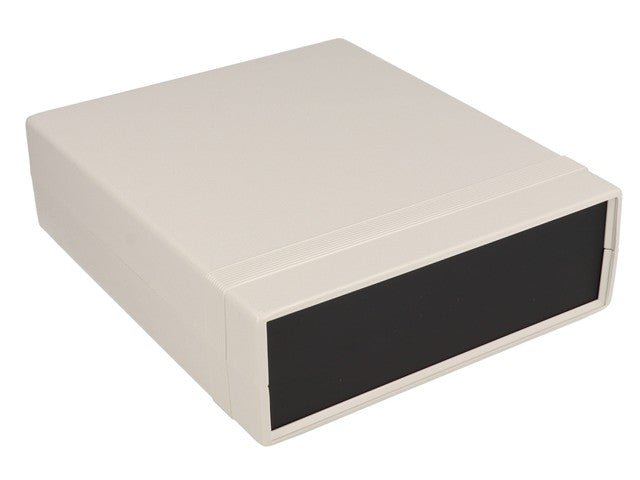

Instrument Enclosure • Polystyrene Plastic • with Aluminium End Panels • 179.5 x 154 x 51 mm • Grey enclosure Black Panel

Features

  • Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards
  • Designed to meet IP54

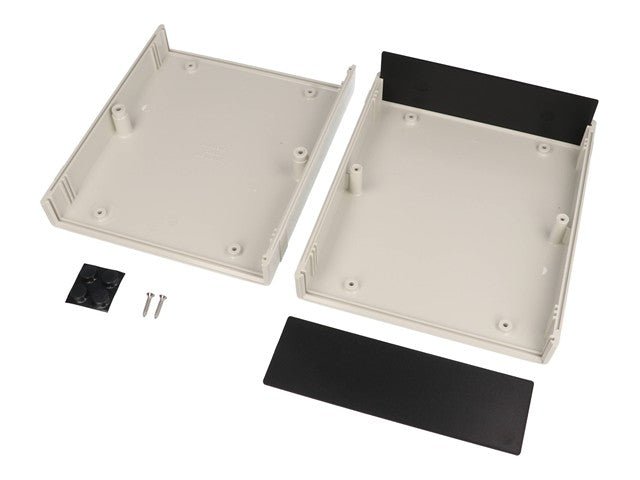

  • Two sets of vertical 1.5 mm (0.062") P.C. Board guides are molded into case halves front and rear

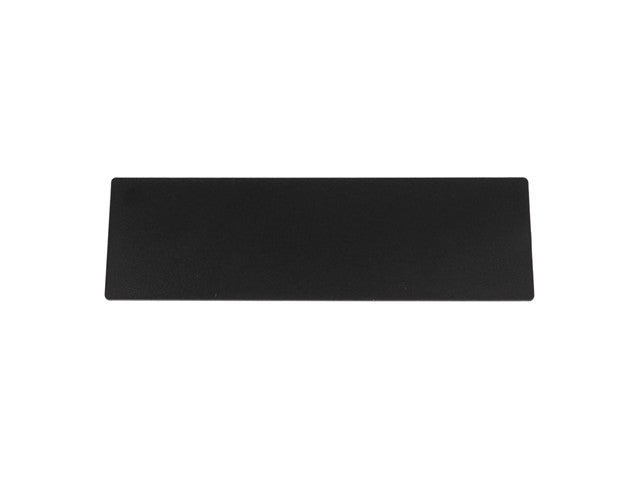

  • Front and rear panels are 1.6 mm (0.064") brushed aluminium with protective paper on one side
  • Enclosure halves are secured with m3 x 0.5" x 10 mm (0.39") phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
  • Integral horizontal P.C. Card mounts on eurocard centers

Specifications

Product Type Instrument Enclosure
Series 1598
Body Material Polystyrene Plastic
External Dimensions 179.5 x 154 x 51 mm
External Length 179.5 mm
External Width 154 mm
External Height 51 mm
Internal Dimensions 167.9 x 144.49 x 46 mm
Internal Length 167.9 mm
Internal Width 144.49 mm
Internal Height 46 mm
Colour Grey
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
