1598ESGY - Plastic Enclosures - 623980795904

1598ESGY

Name: 1598ESGY - Communica [Part No: 1598ESGY]
Brand: Hammond
SKU: 1598ESGY
Price: 412 ZAR
Availability: InStock

SKU: 1598ESGY

BRAND: Hammond

R 473.80_{(inc VAT)}
R 412.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure, IP54 ABS Plastic

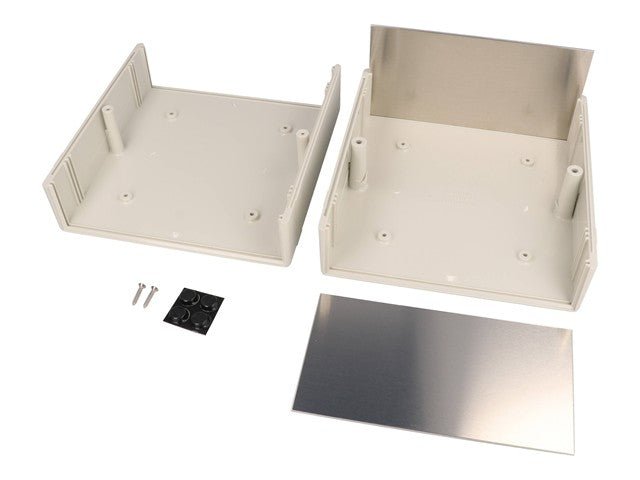

Polystyrene Enclosure 160X160X85 Grey

Polystyrene Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	6.3 in x 6.25 in x 3.35 in (160 mm x 159 mm x 85 mm)
Shipping Weight	0.87 lbs (0.39 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Light Gray
Flame Rating	UL94 HB
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	143.58
Max. P.C. Board Width (mm)	148.44

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Polystyrene Plastic \| Instrument

Discover the 1598ESGY Polystyrene Enclosure, expertly crafted for electronic instruments. This durable, flame-retardant ABS case features IP54 protection, ensuring safety and reliability. Ideal for mounting printed circuit boards, it offers easy assembly and disassembly, making it the perfect choice for your next project. Elevate your device's performance with this sleek, light gray enclosure today!
