1598FBK - Plastic Enclosures - 623980796277

1598FBK

Name: 1598FBK - Communica [Part No: 1598FBK]
Brand: Hammond
SKU: 1598FBK
Price: 378 ZAR
Availability: InStock

SKU: 1598FBK

BRAND: Hammond

R 434.70_{(inc VAT)}
R 378.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure, Polystyrene Plastic

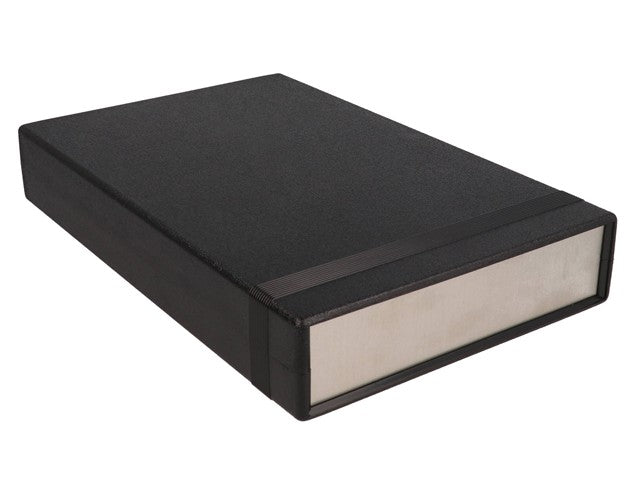

ABS Enclosure 250X160X40 Black

Flame Retardent ABS Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.

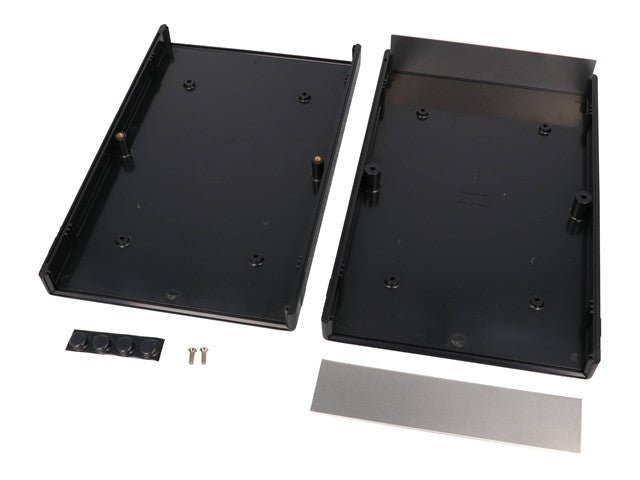

Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	9.8 in x 6.3 in x 1.6 in (249 mm x 160 mm x 41 mm)
Shipping Weight	1 lbs (0.45 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	144.71
Max. P.C. Board Width (mm)	238.35

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Flame Retardent \| ABS Plastic \| Instrument

Discover the 1598FBK ABS Enclosure, expertly crafted for electronic instruments with a sleek black finish. This durable, flame-retardant case features IP54 protection, ensuring your printed circuit boards are safe from dust and moisture. With easy assembly and disassembly, it's perfect for repetitive applications, providing both functionality and peace of mind for your projects.
