1598FSGY

SKU: 1598FSGY

BRAND: Hammond

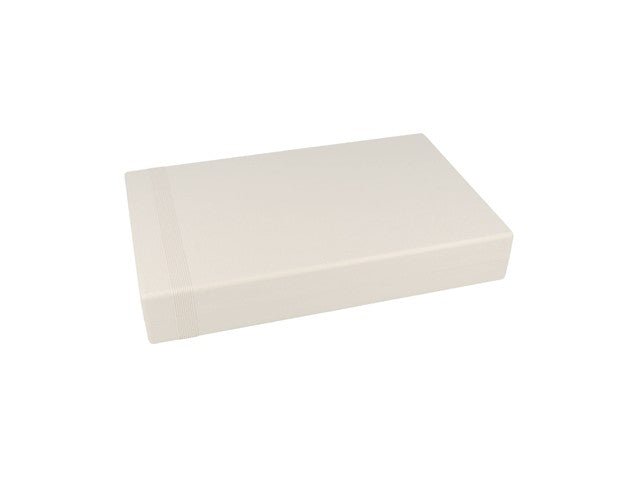

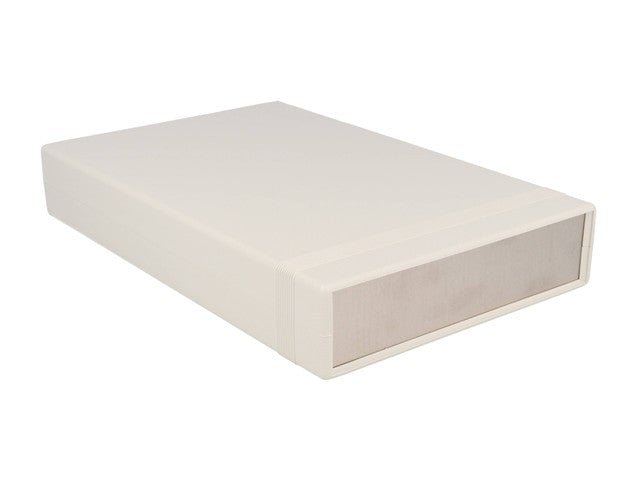

Instrument Enclosure • Polystyrene Plastic • with Aluminium End Panels • 249.7 x 159.25 x 40.9 mm • Grey enclosure Metal Panel.

Features

  • Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards
  • Designed to meet IP54

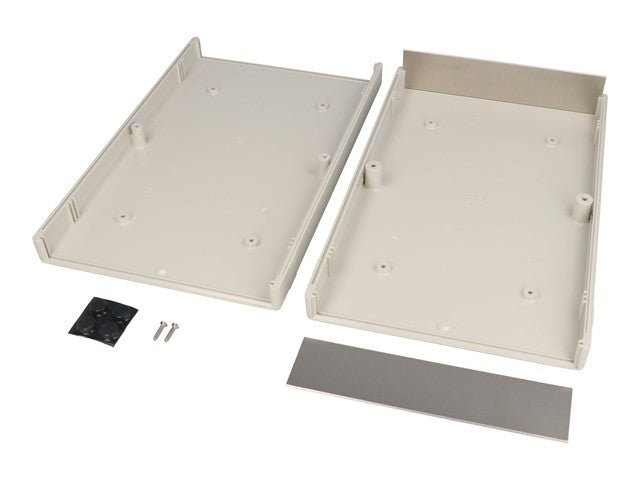

  • Two sets of vertical 1.5 mm (0.062") P.C. Board guides are molded into case halves front and rear
  • Front and rear panels are 1.6 mm (0.064") brushed aluminium with protective paper on one side
  • Enclosure halves are secured with m3 x 0.5" x 10 mm (0.39") phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
  • Integral horizontal P.C. Card mounts on eurocard centers

Specifications

Product Type Instrument Enclosure
Series 1598
Body Material Polystyrene Plastic
External Dimensions 249.7 x 159.25 x 40.9 mm
External Length 249.7 mm
External Width 159.25 mm
External Height 40.9 mm
Internal Dimensions 239.35 x 150.21 x 33.7 mm
Internal Length 239.35 mm
Internal Width 150.21 mm
Internal Height 33.7 mm
Colour Grey
IP Rating IP54
Lid Colour Grey
Flame Rating UL94-HB
