1598FSGYPBK - Plastic Enclosures - 623980323084

1598FSGYPBK

Name: 1598FSGYPBK - Communica [Part No: 1598FSGYPBK]
Brand: Hammond
SKU: 1598FSGYPBK
Price: 356 ZAR
Availability: InStock

SKU: 1598FSGYPBK

BRAND: Hammond

R 409.40_{(inc VAT)}
R 356.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure, Polystyrene Plastic

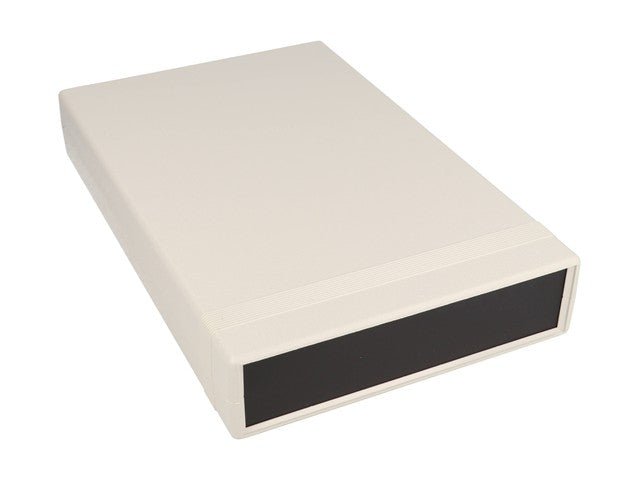

Polystyrene Enclosure 250X160X40MM Black

Polystyrene Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.

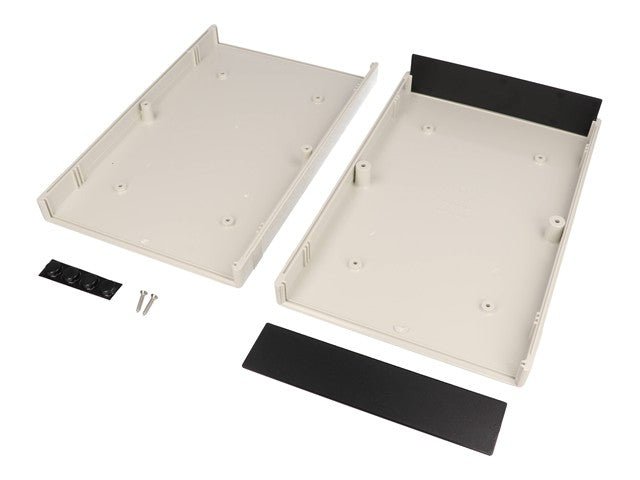

Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	9.8 in x 6.3 in x 1.6 in (249 mm x 160 mm x 41 mm)
Shipping Weight	0.86 lbs (0.39 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 HB
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	144.71
Max. P.C. Board Width (mm)	238.35

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Polystyrene Plastic \| Instrument

Discover the versatile 1598FSGYPBK Polystyrene Enclosure, perfect for securely housing your electronic instruments. Crafted from flame-retardant ABS plastic and rated IP54, this sleek black enclosure ensures durability and safety. Ideal for easy assembly and disassembly, it features integrated guides for printed circuit boards, making it the perfect choice for your project needs. Upgrade your workspace with this reliable and stylish solution today!
