1598GSGYPBK

Name: 1598GSGYPBK - Communica [Part No: 1598GSGYPBK]
Brand: Hammond
SKU: 1598GSGYPBK
Price: 440 ZAR
Availability: InStock

SKU: 1598GSGYPBK

BRAND: Hammond

In Stock
R 506.00_{(inc VAT)}
R 440.00_{(ex VAT)}

Collections: Enclosures

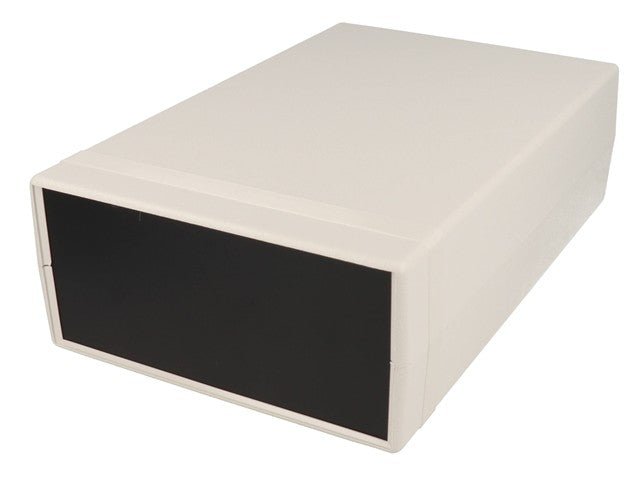

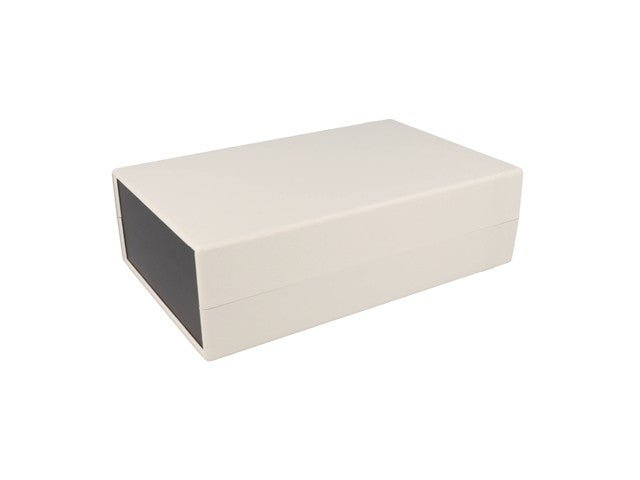

Instrument Enclosure • Polystyrene Plastic • with Aluminium End Panels • 250x160x72mm • Grey enclosure Black Panel

Polystyrene Plastic Instrument Enclosure

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.

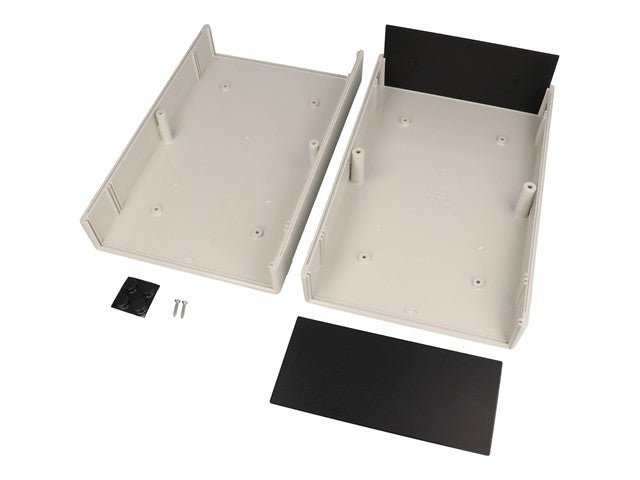

Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Device	Enclosure
Type	Polystyrene Plastic \| Instrument
