1598HSGYPBK

SKU: 1598HSGYPBK

BRAND: Hammond

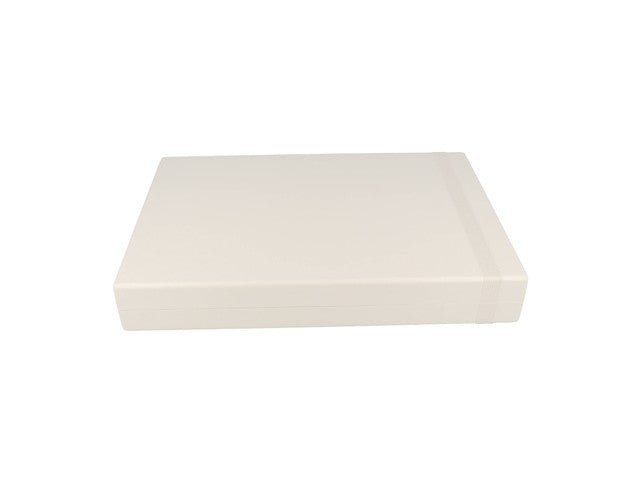

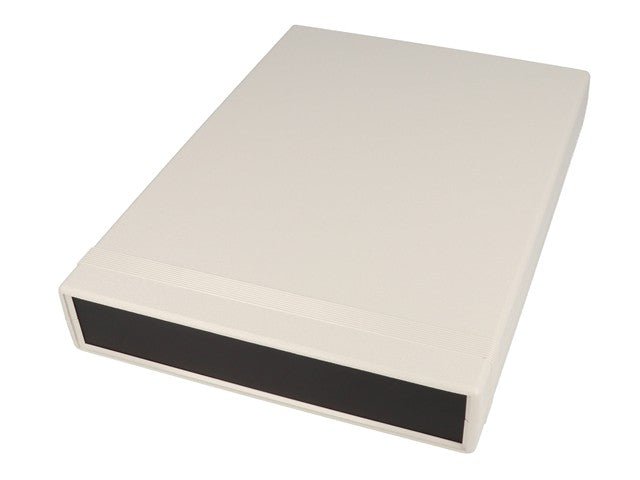

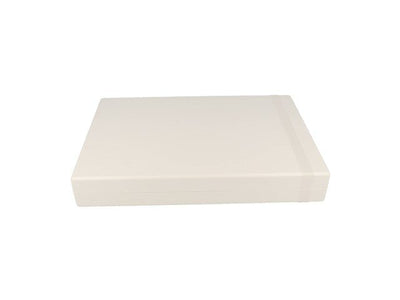

Instrument Enclosure • Polystyrene Plastic • with Aluminium End Panels • 280.89 x 199.89 x 41 mm • Grey enclosure Black Panel.

Features

  • Desktop electronic instrument enclosure, ideally suited for mounting printed circuit boards
  • Designed to meet IP54

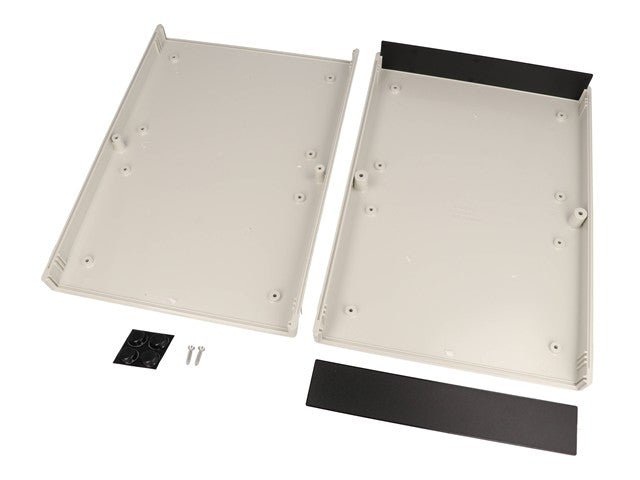

  • Two sets of vertical 1.5 mm (0.062") P.C. Board guides are molded into case halves front and rear
  • Front and rear panels are 1.6 mm (0.064") brushed aluminium with protective paper on one side
  • Enclosure halves are secured with m3 x 0.5" x 10 mm (0.39") phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
  • Integral horizontal P.C. Card mounts on eurocard centers

Specifications

Product Type Instrument Enclosure
Series 1598
Body Material Polystyrene Plastic
External Dimensions 280.89 x 199.89 x 41 mm
External Length 280.89 mm
External Width 199.89 mm
External Height 41 mm
Internal Dimensions 269.69 x 190.16 x 33.5 mm
Internal Length 269.69 mm
Internal Width 190.16 mm
Internal Height 33.5 mm
Colour Grey
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
