1598JBK - Plastic Enclosures - 623980796444

1598JBK

Name: 1598JBK - Communica [Part No: 1598JBK]
Brand: Hammond
SKU: 1598JBK
Price: 800 ZAR
Availability: InStock

SKU: 1598JBK

BRAND: Hammond

R 920.00_{(inc VAT)}
R 800.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Polystyrene Plastic

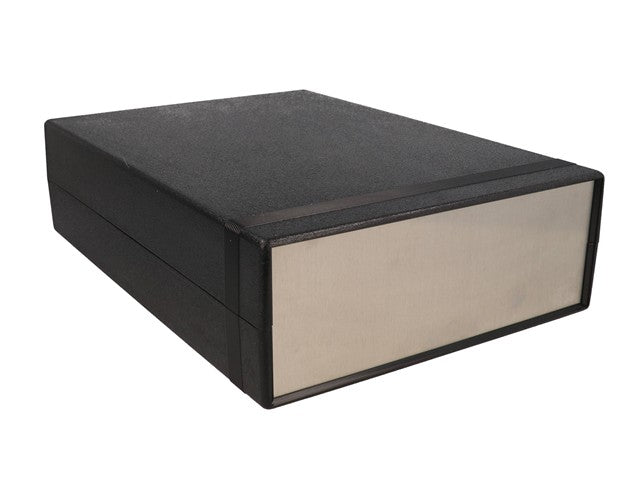

ABS Enclosure 280X200X76 Black

Flame Retardent ABS Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.
Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	11 in x 7.8 in x 3 in (279 mm x 198 mm x 76 mm)
Shipping Weight	1.64 lbs (0.74 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument Case
Max. P.C. Board Length (mm)	184.5
Max. P.C. Board Width (mm)	268.6

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Flame Retardent \| ABS Plastic \| Instrument

Discover the 1598JBK ABS Enclosure, expertly crafted from flame-retardant ABS plastic for superior safety and durability. Ideal for mounting printed circuit boards, this sleek black instrument case meets IP54 standards, ensuring reliable performance in diverse applications. Enjoy easy assembly and disassembly with its secure design, making it the perfect choice for your electronic projects.
