1599BBK

SKU: 1599BBK

BRAND: Hammond

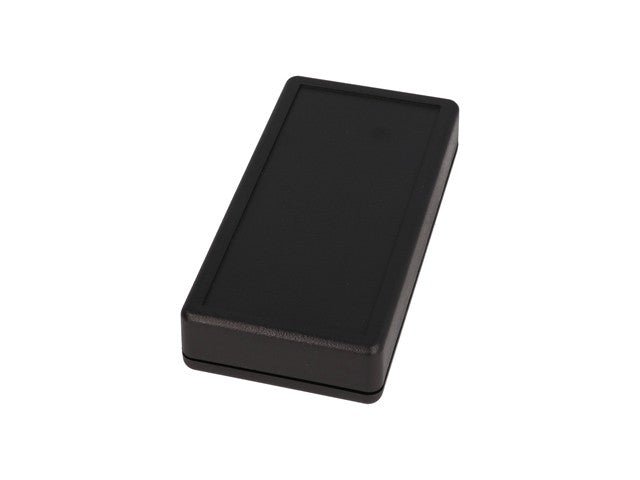

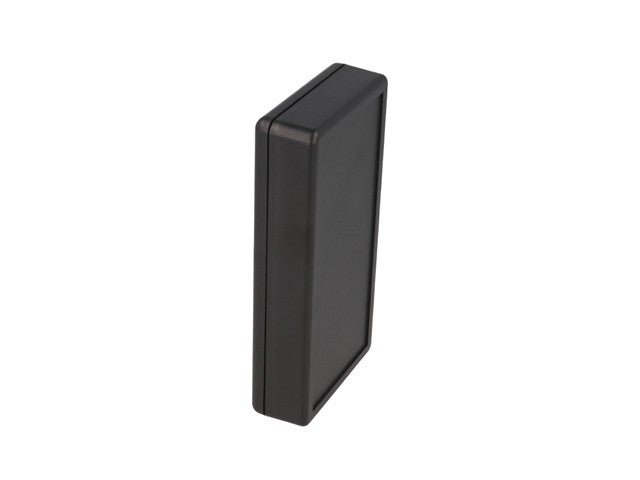

ABS Fire Retard Enclosure 130X65X25MM Black IP54

Low Profile type Hand Held Enclosure

Feature(s)

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.

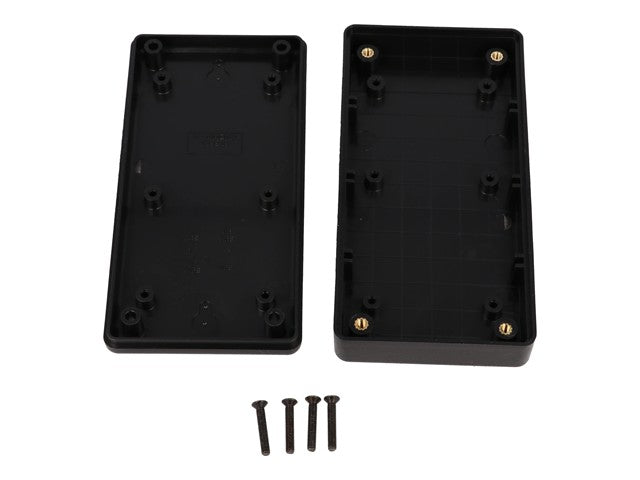

  • Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
  • Economy version is molded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
  • Recessed top for membrane display or pad.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
  • Designed to meet IP54.

Specifications

Size L x W x H 5.12 in x 2.56 in x 0.97 in
(130 mm x 65 mm x 25 mm)
Shipping Weight 0.18 lbs (0.08 kg)
UNSPSC 39121301
UPC 623980566719
Packaging Type shrink wrap
Material ABS Plastic
Color Black
Flame Rating UL94 V-0
IP Rating IP54
Product Category Enclosures
Type Hand-held, general purpose
Max. P.C. Board Length (mm) 53
Max. P.C. Board Width (mm) 123.5

Downloads

Additional Information

Device Enclosure
Type Low Profile Type | Hand Held
