1599BBKBAT

SKU: 1599BBKBAT

BRAND: Hammond

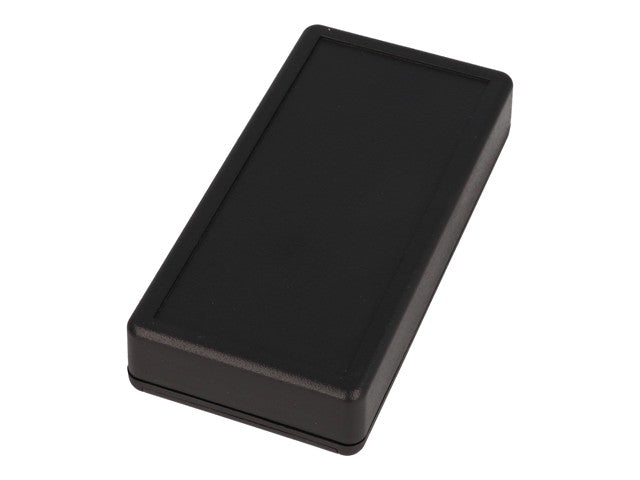

Low Profile type Hand Held Enclosure • Fire Retardent ABS Plastic • with Battery Door • 130 x 65 x 24.75 mm (With Lid) • Black.

Features

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure

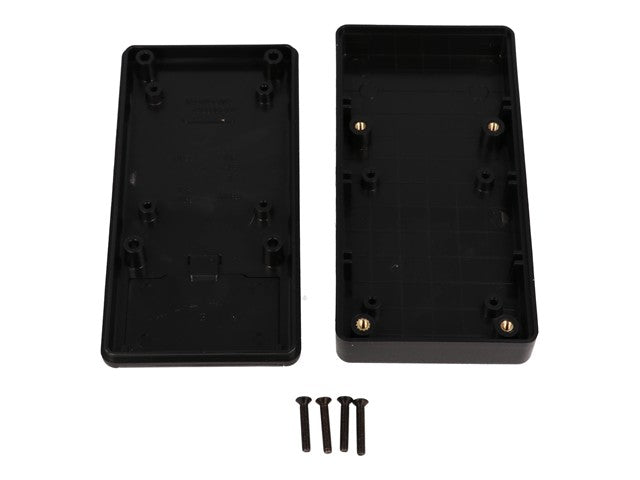

  • Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings
  • Recessed top for membrane display or pad
  • Lap joint construction provides protection against access of dust and splashing water
  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency
  • Designed to meet IP54
  • Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.

Specifications

Product Type Hand-Held Enclosure
Series 1599
Body Material ABS Plastic
External Dimensions 130 x 65 x 24.75 mm (With Lid)
External Length 130 mm
External Width 65 mm
External Height 24.75 mm (With Lid)
Internal Dimensions 124.33 x 59.33 x 19.25 mm
Internal Length 124.33 mm
Internal Width 59.33 mm
Internal Height 19.25 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94 V-0
Number of Knockouts 2
Protection Features Battery Door, Dust and Splashing Water
