1599EBKBAT

SKU: 1599EBKBAT

BRAND: Hammond

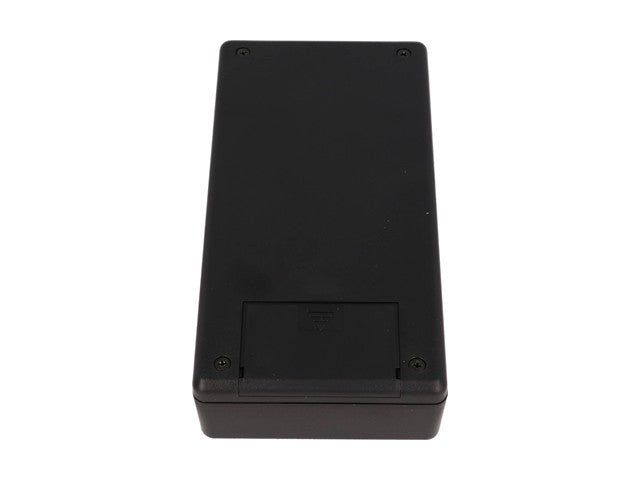

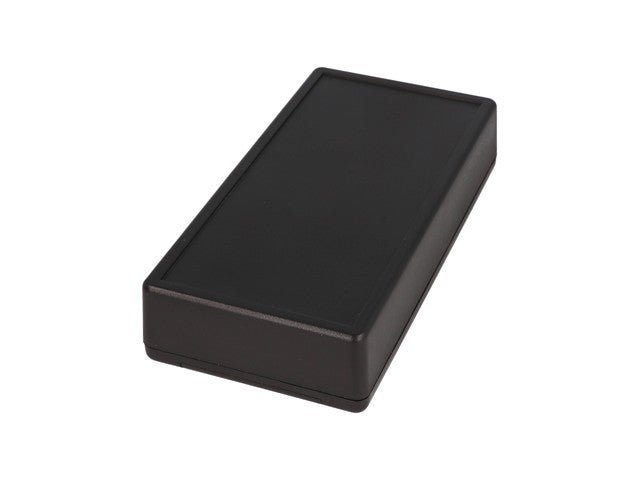

ABS Enclosure with clip+Bat Door 170x85x34 Black

ABS Enclosure with CLIP+BAT Door

Feature(s)

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.

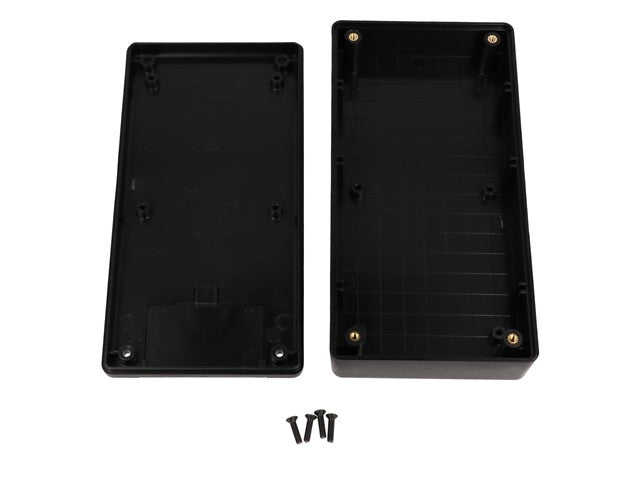

  • Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
  • Economy version is molded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
  • Recessed top for membrane display or pad.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
  • Designed to meet IP54.

Specifications

Size L x W x H 6.7 in x 3.35 in x 1.33 in
(170 mm x 85 mm x 34 mm)
Shipping Weight 0.31 lbs (0.14 kg)
UNSPSC 39121301
UPC 623980566511
Packaging Type shrink wrap
Material ABS Plastic
Color Black
Flame Rating UL94 V-0
Product Category Enclosures
Type Hand-held, battery door
Max. P.C. Board Length (mm) 72
Max. P.C. Board Width (mm) 129

Additional Information

Device Enclosure
Type ABS | CLIP+BAT Door | Black
Highlights with CLIP+BAT Door
