1599EGYBAT

SKU: 1599EGYBAT

BRAND: Hammond

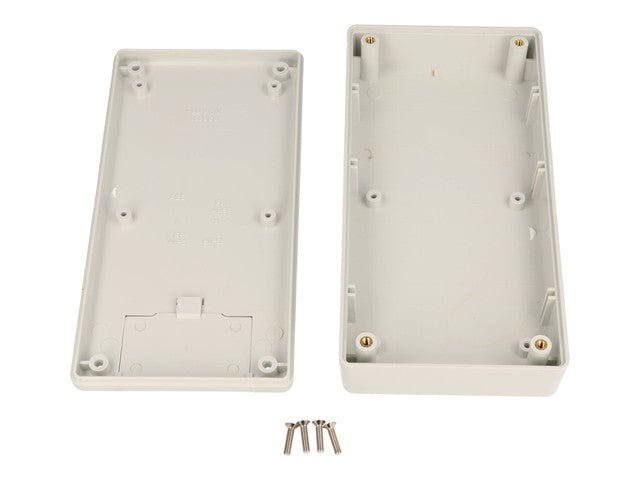

Low Profile type Hand Held Enclosure • Fire Retardent ABS Plastic • with Battery Door • 170x85x34mm • Grey

Feature(s)

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.
  • Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings.
  • Economy version is molded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts.
  • Recessed top for membrane display or pad.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
  • Designed to meet IP54.

Downloads

Additional Information

Sub Group Hand Held
Group Plastic Enclosure
Model 1599EGYBAT
Device Hand Held
Type Low Profile
Body Material Fire Retardent ABS Plastic
Size 170mm x 85mm x 34mm
Base Colour Grey
Degree of Protection IP54
