1599ETSGY

SKU: 1599ETSGY

BRAND: Hammond

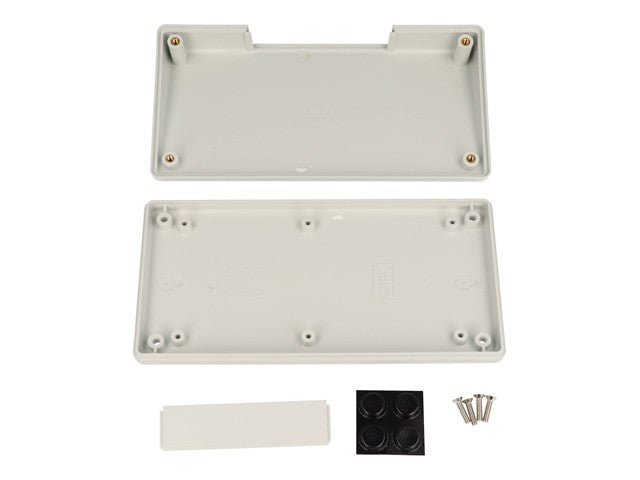

ABS Fire Retard Sloped Enclosure 170 x 85.5 x 34 mm (With Lid)

Features

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure
  • Recessed top for membrane display or pad
  • Lap joint construction provides protection against access of dust and splashing water
  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency
  • Designed to meet IP54
  • Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation

Specifications

Product Type Sloping Console Enclosure
Series 1599
Body Material ABS Plastic
External Dimensions 170 x 85.5 x 34 mm (With Lid)
External Length 170 mm
External Width 85.5 mm
External Height 34 mm (With Lid)
Internal Dimensions 157 x 74.35 x 27.44 mm
Internal Length 157 mm
Internal Width 74.35 mm
Internal Height 27.44 mm
Colour Grey
IP Rating IP54
Lid Colour Grey
Flame Rating UL94 V-0
Number of Knockouts 2
Protection Features Dust and Splashing Water
