1599HGY - Plastic Enclosures - 623980566788

1599HGY

Name: 1599HGY - Communica [Part No: 1599HGY]
Brand: Hammond
SKU: 1599HGY
Price: 275 ZAR
Availability: InStock

SKU: 1599HGY

BRAND: Hammond

R 316.25_{(inc VAT)}
R 275.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 ABS Plastic

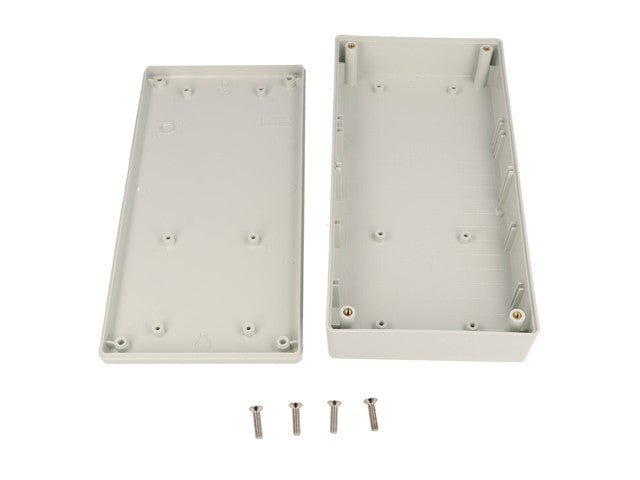

ABS Fire Retardant Enclosure 220 X 110 X 44MM IP54 Grey

ABS Fire Retardant Enclosure

Feature(s)

Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Recessed top for membrane display or pad.
Lap joint construction provides protection against dust accumulation and splashing water.
Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
Designed to meet IP54.
Lid is secured with Philips machine screws, threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.

Specifications

Size L x W x H	8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm)
Shipping Weight	0.54 lbs (0.24 kg)
UNSPSC	39121301
UPC	623980566788
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Light Gray
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Hand-held, general purpose
Max. P.C. Board Length (mm)	96.5
Max. P.C. Board Width (mm)	212.5

Downloads

Datasheet - 1599H

Additional Information

Device	Enclosure
Type	ABS \| Fire Retardant

Discover the 1599HGY ABS Fire Retardant Enclosure, designed for durability and safety with a UL94 V-0 flame rating. Its IP54 rating ensures protection from dust and water, making it ideal for versatile applications. Stylish and ergonomic, this enclosure offers easy assembly and wall mounting options, perfect for both handheld and general-purpose use. Elevate your project with this reliable, aesthetically pleasing solution!
