1599HGYBAT - Plastic Enclosures - 623980998961

1599HGYBAT

Name: 1599HGYBAT - Communica [Part No: 1599HGYBAT]
Brand: Hammond
SKU: 1599HGYBAT
Price: 258 ZAR
Availability: InStock

SKU: 1599HGYBAT

BRAND: Hammond

R 296.70_{(inc VAT)}
R 258.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 ABS Plastic

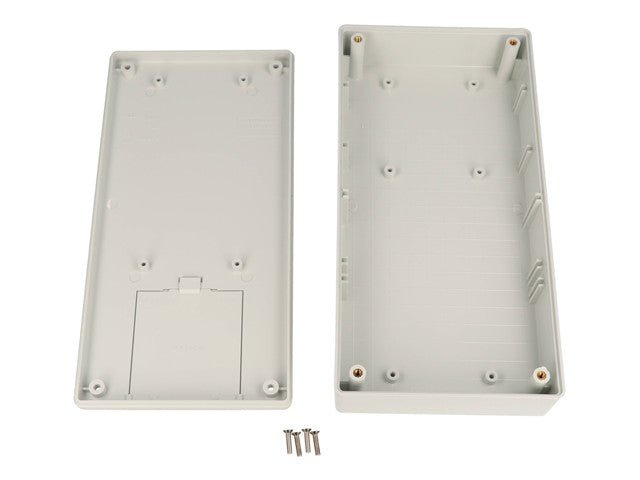

ABS Flame Retardent Enclosure Handheld 220 X110 X 45MM Grey With Battery Compartment IP54

ABS Flame Retardent Enclosure Handheld

Feature(s)

Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Recessed top for membrane display or pad.
Lap joint construction provides protection against dust accumulation and splashing water.
Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
Lid is secured with Philips machine screws, threaded into tapped integral brass bushings.
Perfect for applications with repetitive assembly and disassembly are required.
Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.

Specifications

Size L x W x H	8.66 in x 4.33 in x 1.73 in (220 mm x 110 mm x 44 mm)
Shipping Weight	0.55 lbs (0.25 kg)
UNSPSC	39121301
UPC	623980998961
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Light Gray
Flame Rating	UL94 V-0
Product Category	Enclosures
Type	Hand-held, battery door
Max. P.C. Board Length (mm)	96.5
Max. P.C. Board Width (mm)	140

Downloads

Datasheet - 1599HGYBAT

Additional Information

Device	Enclosure
Type	ABS \| Flame \| Retardent \| Handheld
Highlights	Battery Compartment IP54

Discover the 1599HGYBAT handheld enclosure, expertly crafted from flame-retardant ABS plastic for safety and durability. With an IP54 rating, it protects against dust and splashes, making it ideal for versatile applications. Its sleek design and battery compartment offer both style and functionality, perfect for easy assembly and installation. Elevate your project with this reliable, ergonomic enclosure today!
