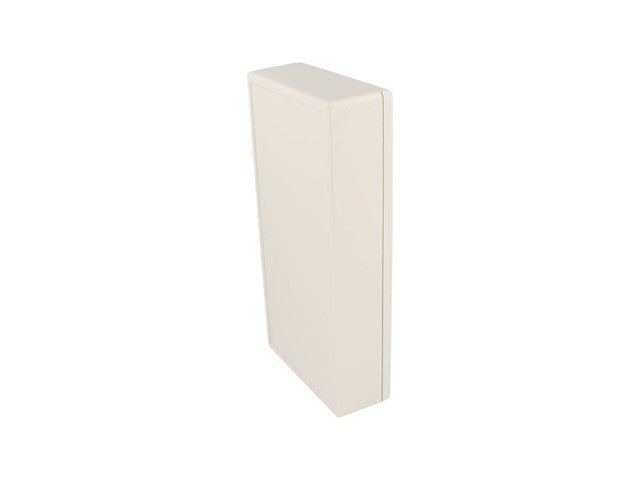

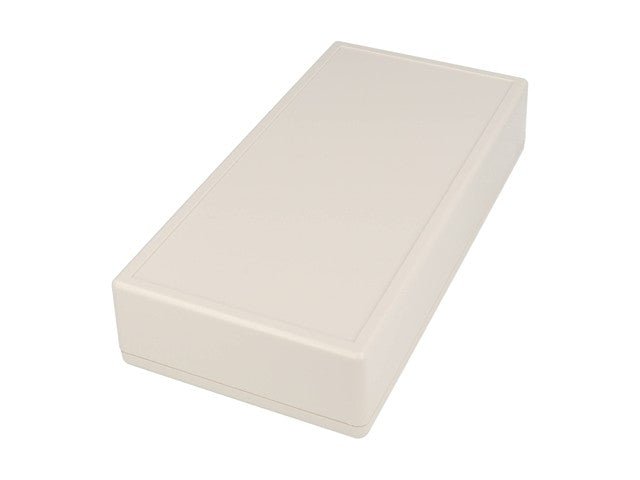

Hand Held Enclosure • Polystyrene Plastic • 220 x 110 x 44.85 mm (With Lid) • Grey
Features
- Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure

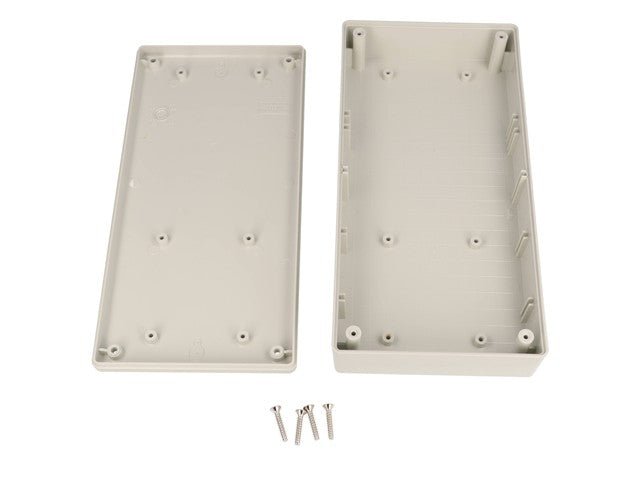

- Economy version is molded from economical plastic (not flame retardant) and is assembled with self-tapping screws into plastic posts
- Recessed top for membrane display or pad
- Lap joint construction provides protection against access of dust and splashing water
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency
- Designed to meet IP54
- Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
Specifications
Product Type |
Hand-Held Enclosure |
Series |
1599 |
Body Material |
Polystyrene Plastic |
External Dimensions |
220 x 110 x 44.85 mm (With Lid) |
External Length |
220 mm |
External Width |
110 mm |
External Height |
44.85 mm (With Lid) |
Internal Dimensions |
213.68 x 103.68 x 38.25 mm |
Internal Length |
213.68 mm |
Internal Width |
103.68 mm |
Internal Height |
38.25 mm |
Colour |
Grey |
IP Rating |
IP54 |
Lid Colour |
Grey |
Flame Rating |
UL94-HB |
Number of Knockouts |
2 |
Protection Features |
Dust and Splashing Water |
