1599HSGYBAT

SKU: 1599HSGYBAT

BRAND: Hammond

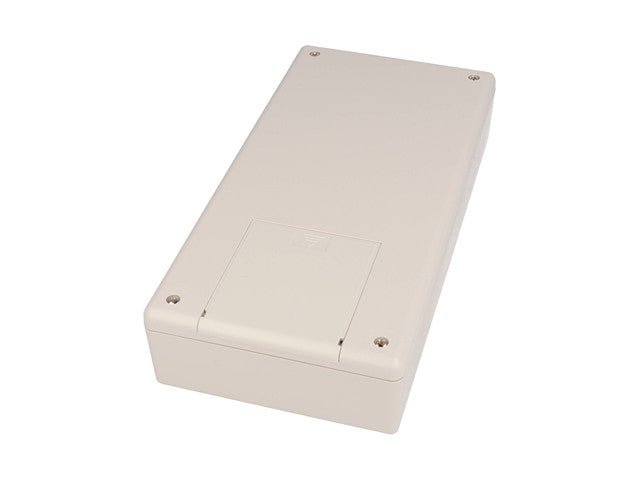

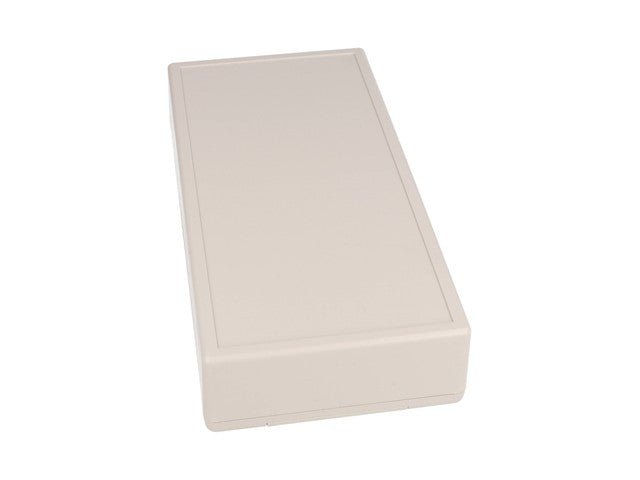

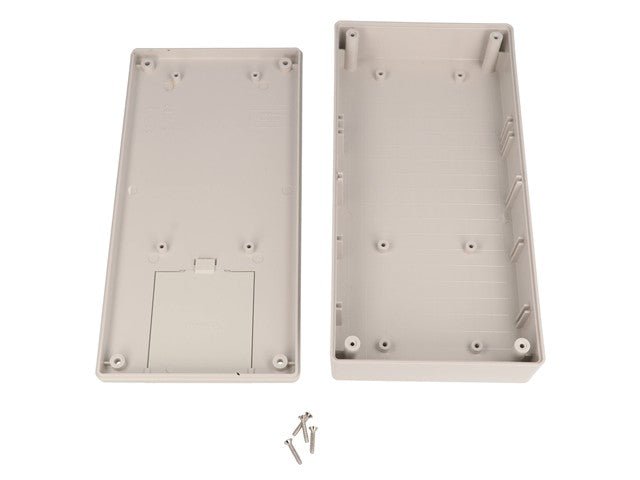

Polystyrene Enclosure Handheld 220x11x45mm Grey with Battery Compartment

Polystyrene Enclosure Handheld Grey

Feature(s)

  • Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure.
  • Recessed top for membrane display or pad.
  • Lap joint construction provides protection against dust accumulation and splashing water.
  • Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency.
  • Lid is secured with Philips machine screws, threaded into tapped integral brass bushings.
  • Perfect for applications with repetitive assembly and disassembly are required.
  • Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.

Specifications

Size L x W x H 8.66 in x 4.33 in x 1.73 in
(220 mm x 110 mm x 44 mm)
Shipping Weight 0.5 lbs (0.23 kg)
UNSPSC 39121301
UPC 623980998954
Packaging Type shrink wrap
Material ABS Plastic
Color Light Gray
Flame Rating UL94 HB
Product Category Enclosures
Type Hand-held, battery door
Max. P.C. Board Length (mm) 96.5
Max. P.C. Board Width (mm) 140

Downloads

Additional Information

Group Plastic Enclosure
Device Enclosure
Type Polystyrene | Handheld | Grey
Highlights with Battery Compartment
