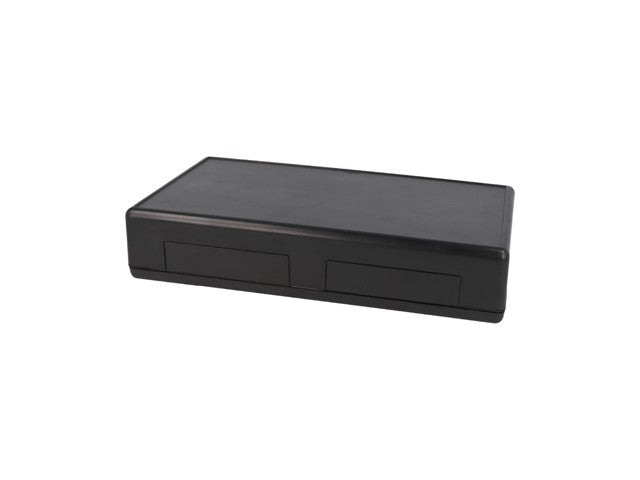

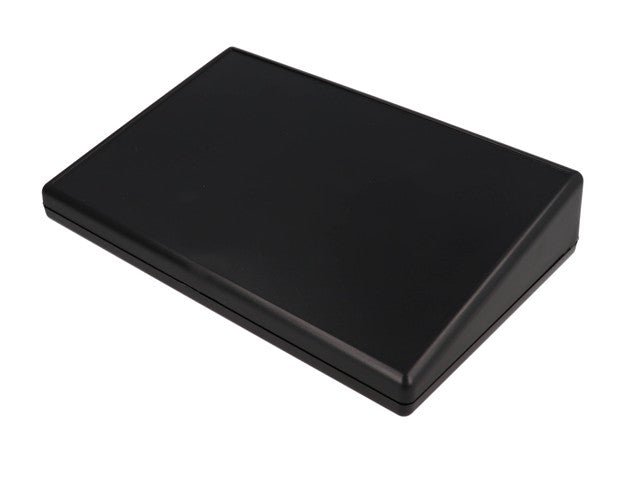

Sloping Console Enclosure • Polystyrene Plastic • 140 x 220 x 46 mm (With Lid) • Black
Features
- Attractively styled and ergonomically designed for use as a “hand-held” instrument enclosure

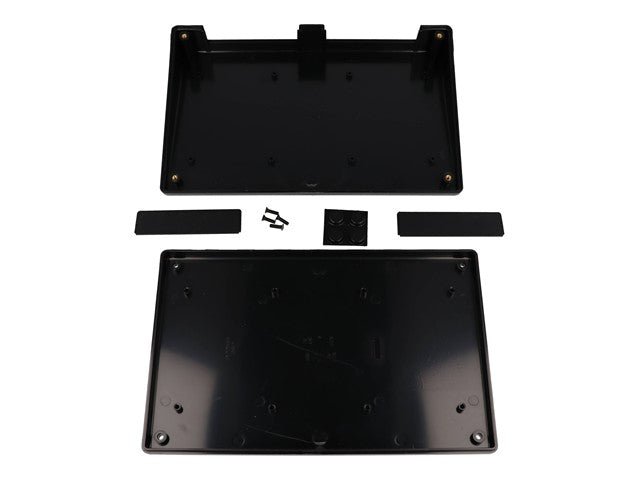

- Standard version is molded from flame retardant ABS plastic (rated UL94V-0) and is assembled with machine screws into integral brass bushings
- Recessed top for membrane display or pad
- Lap joint construction provides protection against access of dust and splashing water
- Extra deep top and ultra shallow base are specifically designed to enhance the aesthetics of the enclosure and provide the user with flexibility and assembly efficiency
- Designed to meet IP54
- Two keyhole knockouts are molded into the inside of the base to facilitate wall mounting installation.
Specifications
Product Type |
Sloping Console Enclosure |
Series |
1599 |
Body Material |
Polystyrene Plastic |
External Dimensions |
140 x 220 x 46 mm (With Lid) |
External Length |
140 mm |
External Width |
220 mm |
External Height |
46 mm (With Lid) |
Internal Dimensions |
206 x 129.5 x 39.01 mm |
Internal Length |
206 mm |
Internal Width |
129.5 mm |
Internal Height |
39.01 mm |
Colour |
Black |
IP Rating |
IP54 |
Lid Colour |
Black |
Flame Rating |
UL94 V-0 |
Number of Knockouts |
2 |
Protection Features |
Dust and Splashing Water |
