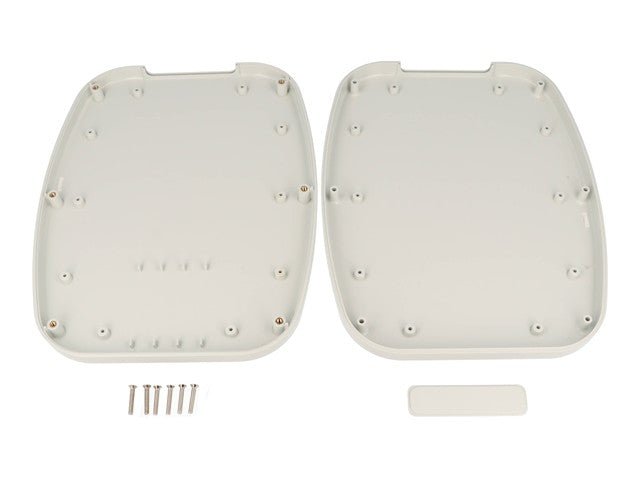

Enclosure Tablet Case ABS Grey Handheld Split Sides And End Panels 240 X 190 X 30MM IP54 Flame Retardent
ABS Tablet Case Grey Enclosure
Feature(s)
- Low profile - ergonomically designed for a comfortable fit into the user’s hands.
- Perfect for instrument or mobile data enclosures requiring a touch screen.
- Choice of two sizes - both available with or without battery compartment.
- Molded from flame retardant ABS plastic, choice of black or grey - material carries a UL flammability rating of 94V-0.
- Enclosure is assembled with six (6) - M3-0.5 x 18 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Integral brass bushings are factory inserted into the top half of the enclosure.
- Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54.
- P.C. board standoffs are molded into case top & bottom halves (see drawings or photos for more details).
- Contains one end panel - removable for easy modification.
- Bottom half of enclosure includes a square - molded inlay for labels.
Screws
- 100 pack of silver replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100
- 100 pack of black replacement cover screws (M3-0.5 x 18mm Flat Head), part number 1594MS100BK
- 50 pack of optional PC board screws (#4 x 1/4" Self Tapping), part number 1593ATS50
- 100 pack of optional PC board screws (#4 x 1/4" Self Tapping), part number 1593ATS100
Additional Information
| Device |
Enclosure |
| Type |
ABS | Tablet Case | Grey |
| Size |
240m x 190m x 30mm |
Discover the 1599TABLGY Grey Tablet Enclosure Case, expertly crafted from flame-retardant ABS for durability and safety. With an ergonomic design and IP54 protection, it's perfect for touch screen applications and mobile data enclosures. Enjoy easy assembly and modification with removable end panels, making it the ideal choice for both personal and professional use. Upgrade your device protection today!
