Overview

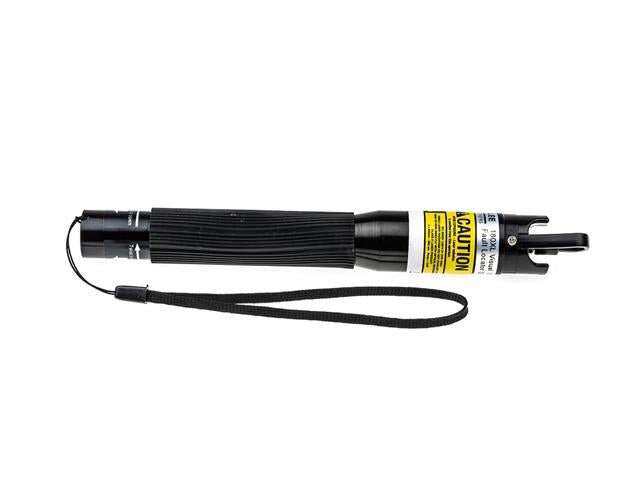

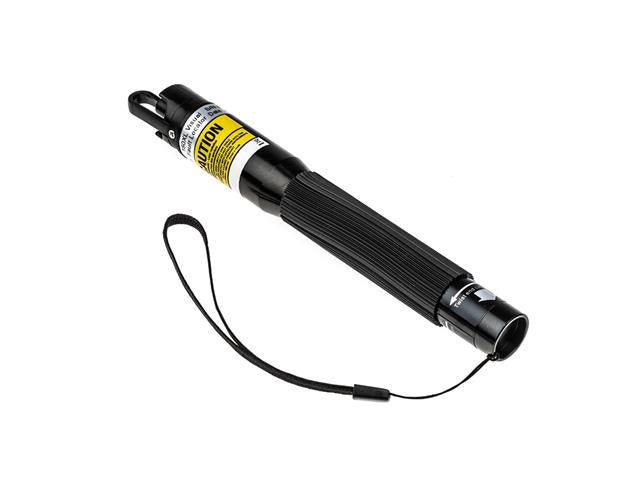

The Greenlee fibre optic test equipment has a maximum output power of 0dB. It is a visual fault locator that is used to confirm the fibre continuity up to a distance of 7km. This test equipment allows the technicians to quickly and safely locate broken and pinched fibres, faulty connectors and bad splices. It allows the operator to locate faults visually, without the use of any additional expensive equipment.
Features
- Universal 2.5mm bulkhead
- Compatible with single mode and multimode fibres
- 2Hz modulation mode
- Operating temperature ranges between -10°C and 45°C
- Long battery life of 80 hours with 3.9Wh batteries
- Red/Green LEDs for display operations
Applications
- Measure and locate high-loss splices, connections and breaks
- Locate the end of a fibre
- Find potential sources of error caused by reflectance from dirty or poor connections
- Detect live optical signals before it begins testing
Certifications
- CE certified
- CDRH certified
- Class 2 certification provides safe light levels to the technician
Specifications
- Cable Type : Single Mode & Multimode
- Wavelengths : 650nm
- Operation Test Distance : 7km
- Battery Type : AA
- Battery Life : 80 h
- Power Source : Battery
- Includes : Visual Fault Locator, AA Batteries (2), Instruction Manual, Soft Carry Case
- Minimum Operating Temperature : -10°C
- Dimensions : 23 (Dia.) x 180mm
- Maximum Operating Temperature : +45°C
- Diameter : 23mm
- Weight : 120 (with out Battery)g
- Height : 180mm
Additional Information
Device |
Fault Locator |
Type |
Visual |
