1HAS1T1B1M1N1S

SKU: 1HAS1T1B1M1N1S

BRAND: Communica

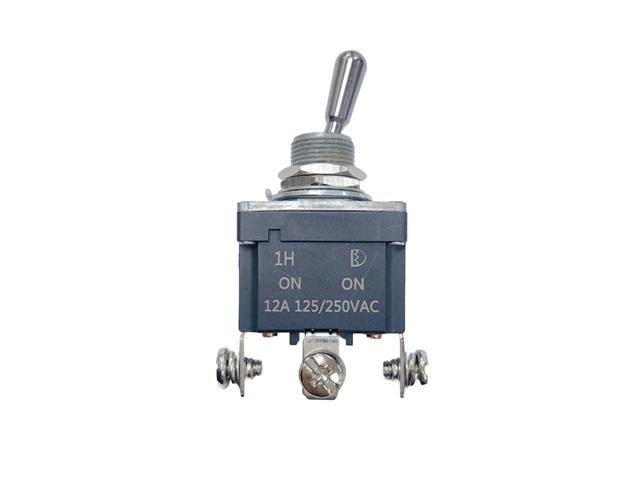

Waterproof Toggle Switch Hi Power / Duty Cycle Single Pole Form 1C (1c/o On-On) 12A 250VAC Screw/Fast-On Terminals

Waterproof Toggle Switch Hi Power

Specifications

  • CONTACT RATING: 12 Amps @125/250 VAC.
  • MECHANICAL LIFE: 30,000 make-and-break cycles.
  • CONTACT RESISTANCE: 20 mΩmax. (initial value) @ 2-4VDC
  •  100mA for both silver and gold plated contacts.
  • INSULATION RESISTANCE: 1,000 MΩmin./500VDC
  • DIELECTRIC STRENGTH: 1,500 Vrms min.@sea level.(initial value)
  • OPERATING TEMPERATURE: -30°C to 85°C
Materials
  • CASE: Diallyl phthalate (NYLON) (UL94v-0)
  • ACTUATOR: Brass, chrome plated.
  • BUSHING: Zin+Silicon.
  • CONTACT: Copper, Silver plated.
  • TERMINAL: Copper, Nickel plated
Applications
  • Crane remote control,Aaerial work vehicle controller,Joystick, Industrial controllers

Additional Information

Device Power
Type Waterproof | Toggle | Hi
