1HAS4T1B1M1N1S

Name: 1HAS4T1B1M1N1S - Communica [Part No: 1HAS4T1B1M1N1S]
Brand: Communica
SKU: 1HAS4T1B1M1N1S
Price: 211 ZAR
Availability: InStock

SKU: 1HAS4T1B1M1N1S

BRAND: Communica

In Stock
R 242.65_{(inc VAT)}
R 211.00_{(ex VAT)}

Collections: Electromechanical

Type: Switches

Category: Toggle Switches

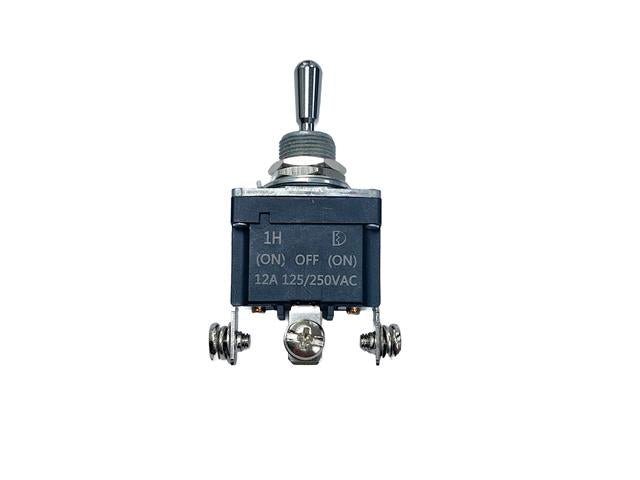

Waterproof Toggle Switch Hi Power / Duty Cycle Single Pole - (ON)-OFF-(ON) - Form 1C (1c/o On-Off-On) 12A 250VAC Screw/Fast-On Terminals

Hi Power Waterproof Toggle Switch

Specifications

Contact Rating: 12 Amps @125/250 VAC.
Mechanical Life: 30,000 make-and-break cycles.
Contact Resistance: 20 mȟġmax. (initial value) @ 2-4VDC 100mA for both silver and gold plated contacts.
Insulation Resistance: 1,000 Mȟġmin./500VDC
Dielectric Strength: 1,500 Vrms min.@sea level.(initial value)
Operating Temperature: -30°C to 85°C.

Materials

Case: Diallyl phthalate (NYLON) (UL94v-0)
Actuator: Brass, chrome plated
Bushing: Zin+Silicon
Contact: Copper, Silver plated
Terminal: Copper, Nickel plated

Downloads

Datasheet - 1H Series_2022-2023

Additional Information

Device	Switch
Type	Hi Power \| Waterproof \| Toggle
