223-99-628

SKU: 223-99-628

BRAND: Communica

R 5.35_{(inc VAT)}
R 4.65_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: PCB Connectors

Category: IC Sockets

Socket

Socket

Specifications

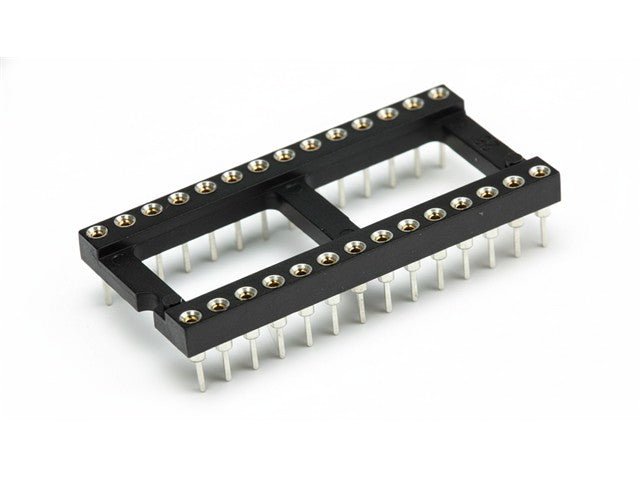

Product Type: IC Socket (DIP / DIL)
Manufacturer: PRECIDIP
Part Number: 223-99-628
Number of Pins: 28
Pin Pitch: 2.54 mm (0.1")
Row Spacing: 15.24 mm (0.6")
Mounting Type: Through-hole
Contact Type: Turned pin (precision / machined)
Contact System: Multi-finger (clip contact)
Frame Type: Open frame
Termination Type: Solder tail
Contact Material: Copper alloy
Contact Plating: Gold over nickel
Current Rating: ~1 A
Working Voltage: 100 VRMS / 150 VDC
Contact Resistance: Low (typ. < 10 mΩ)
Insulation Resistance: ≥ 10⁴ MΩ @ 500 V
Capacitance: ≤ 1 pF
Operating Temperature: −55°C to +125°C
Climatic Category: 55/125/21
Contact Retention: ≥ 3.3 N
Clip Retention: ≥ 40 N
Compliance: RoHS compliant

Additional Information

Device	Socket
Type	Socket
