2SA808

Name: 2SA808 - Communica [Part No: 2SA808]
Brand: Communica
SKU: 2SA808
Price: 6.18 ZAR
Availability: InStock

SKU: 2SA808

BRAND: Communica

R 7.11_{(inc VAT)}
R 6.18_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP General Purpose Transistor

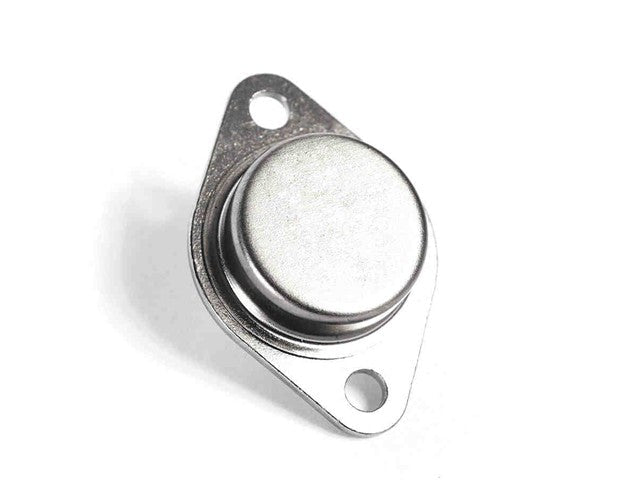

Transistor PNP NF/S-L,80V 6A,50W,10MHz TO3

Transistor Silicon PNP

Specifications

Case	TO3
Vbr CBO	80
Vbr CEO	80
Max. PD (W)	50
Derate (Amb) (W/°C)	454m
Max. hFE	50-
Min hFE	20
Ic Max. (A)	6.0
@Ic (test) (A)	3.0
Icbo Max. @Vcb Max. (A)	1.0m
Polarity	PNP
R(sat) (Û)	500m
Trans. Freq (Hz) Min.	10M
Oper. Temp (°C) Max.	140
@VCE (V)	4.0
Pinout Equivalence Number	3-14
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	50 W
Maximum Collector-Base Voltage \|Vcb\|	80 V
Maximum Collector-Emitter Voltage \|Vce\|	80 V
Maximum Emitter-Base Voltage \|Veb\|	6 V
Maximum Collector Current \|Ic max\|	6 A
Max. Operating Junction Temperature (Tj)	175 °C
Transition Frequency (ft):	10 MHz
Forward Current Transfer Ratio (hFE), MIN	20

Additional Information

Device

Transistor

Upgrade your electronics with the 2SA808 PNP Transistor. With 80V, 6A capacity and a transition frequency of 10MHz, it ensures reliable performance and efficiency. Perfect for high-power applications, this robust transistor delivers excellent thermal stability, making it a must-have for your projects.
