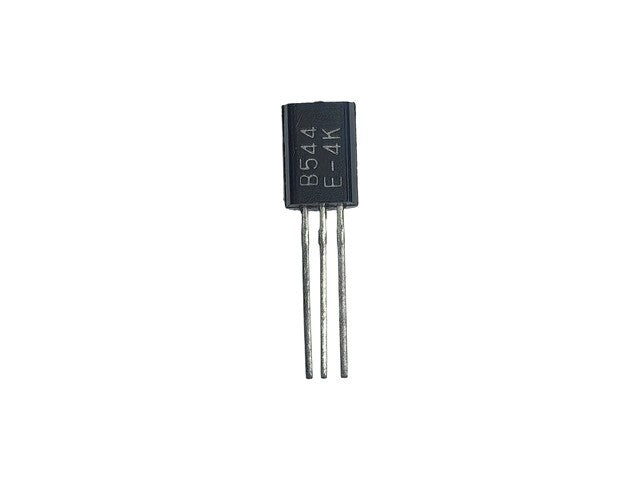

2SB544

Name: 2SB544 - Communica [Part No: 2SB544]
Brand: Communica
SKU: 2SB544
Price: 1.69 ZAR
Availability: InStock

SKU: 2SB544

BRAND: Communica

R 1.94_{(inc VAT)}
R 1.69_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP Power Transistor

P 25V 1A

SI-P 25V 1A 0.9W 180MHz

Specifications

Type Designator: 2SB544
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.9 W
Maximum Collector-Base Voltage |Vcb|: 25 V
Maximum Collector-Emitter Voltage |Vce|: 25 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 1 A
Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 90 MHz
Collector Capacitance (Cc): 50 pF
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: -
Package: TO92

Additional Information

Frequency Response	180MHz
Import Data	SI-P 25V 1A 0.9W 180MHz
Keywords	BJT
Device	Transistor
Type	Bipolar Junction
Polarity	PNP
Material	Silicon
Power Dissipation	0.9A

Discover the 2SB544 PNP Bipolar Junction Transistor, designed for high performance with a 180MHz frequency response. With a 0.9W power dissipation and a maximum collector current of 1A, this reliable silicon transistor ensures efficient operation for your electronic projects. Upgrade your circuits with the 2SB544 and experience enhanced stability and performance.
