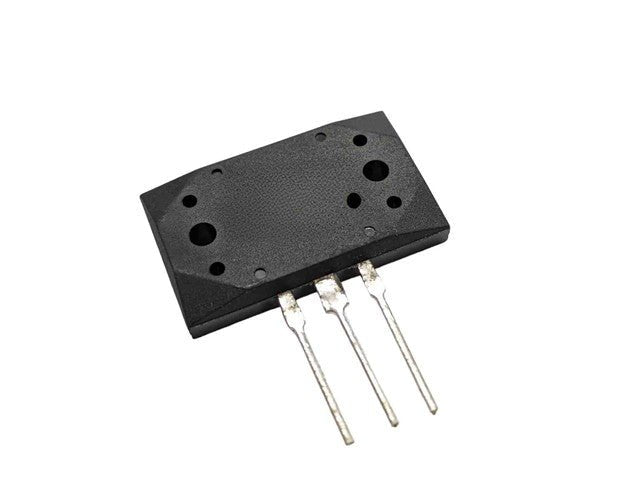

2SB705

Name: 2SB705 - Communica [Part No: 2SB705]
Brand: Communica
SKU: 2SB705
Price: 29.25 ZAR
Availability: InStock

SKU: 2SB705

BRAND: Communica

R 33.64_{(inc VAT)}
R 29.25_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: PNP Silicon Epitaxial Planar Transistor

SI-P 140V 10A 120W 17MHz

Transistor Silicon PNP

Specifications

Vbr CBO	140
Vbr CEO	140
Max. PD (W)	120
Derate (Amb) (W/°C)	960m
Max. hFE	200
Min hFE	40
Ic Max. (A)	10
@Ic (test) (A)	2.0
Icbo Max. @Vcb Max. (A)	50u
Polarity	PNP
Trans. Freq (Hz) Min.	17M
Oper. Temp (°C) Max.	140
@VCE (V)	5.0
Pinout Equivalence Number	4-33
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	120 W
Maximum Collector-Base Voltage \|Vcb\|	140 V
Maximum Collector-Emitter Voltage \|Vce\|	140 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	10 A
Max. Operating Junction Temperature (Tj)	150 °C
Collector Capacitance (Cc)	430 pF
Transition Frequency (ft):	9 MHz
Forward Current Transfer Ratio (hFE), MIN	80

Additional Information

Device

Transistor

Enhance your electronic projects with the 2SB705 PNP Transistor. With a robust 140V rating and up to 10A current, this high-performance transistor ensures reliable operation at frequencies up to 17MHz. Ideal for efficient power management and circuit design, it offers excellent thermal stability and durability. Upgrade your components today for superior performance!
