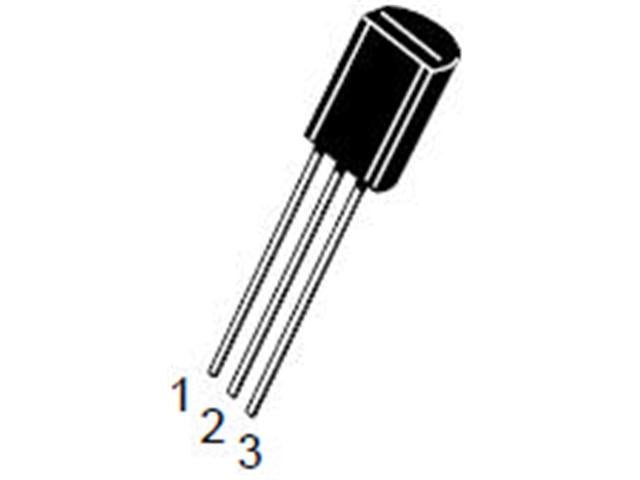

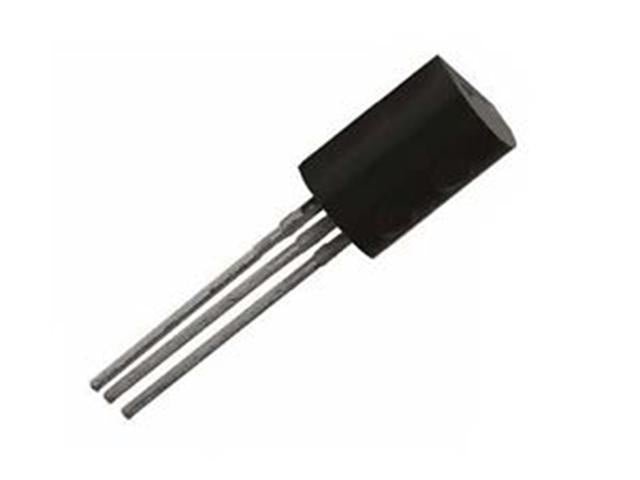

2SC2383

SKU: 2SC2383

BRAND: Communica


Sold Out

Collections:

Type: Transistors

Category: NPN General Purpose Transistor

SI-N 160V 1A 0.9W 100MHz TO92L Silicon Transistor.

Silicon Transistor

Specifications

Absolute Maximum Ratings (Ta=25°C)

  • Collector Base Voltage : 160V
  • Collector Emitter Voltage : 160V
  • Emitter Base Voltage : 6V
  • Collector Current Continuous : 1A
  • Collector Power Dissipation : 0.75W
  • Junction Temperature Range : -55°C to 150°C
  • Storage Temperature Range : -55°C to 150°C

Electrical Characteristics (TA=25°C)

  • Collector Base Breakdown Voltage : 160V
  • Collector Emitter Breakdown Voltage : 160V
  • Emitter Base Breakdown Voltage : 6V
  • Collector Cut off Current : 1µA
  • Collector Cut off Current : 10µA
  • Emitter Cut off Current : 1µA
  • Collector Emitter Saturation Voltage : 1V
  • Base Emitter ON Voltage : 0.75V
  • Transition Frequency : 20MHz

Downloads

Additional Information

CatGroup Transistor
Frequency Response 100MHz
Import Data SI-N 160V 1A 0.9W 100MHz
Keywords BJT
Device Transistor
Type Bipolar Junction
Polarity NPN
Material Silicon
Power Dissipation 0.9A
Discover the 2SC2383 Silicon Transistor, a reliable NPN BJT designed for high-frequency applications up to 100MHz. With impressive specifications, including 160V collector voltage and 1A collector current, it ensures optimal performance and efficiency for your electronic projects. Maximize your circuit's reliability with this durable and versatile component.
