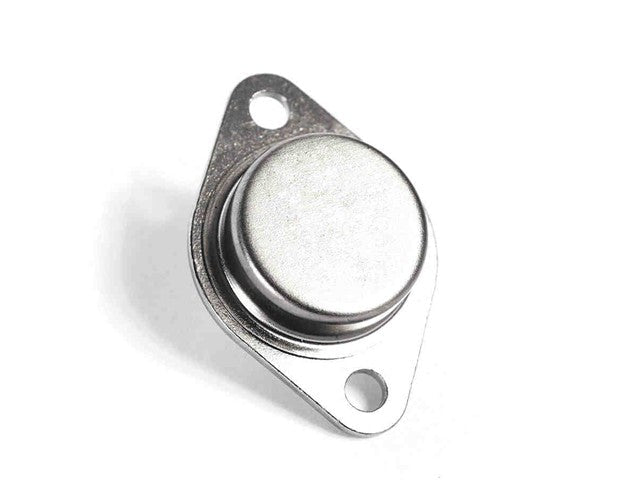

2SC647

Name: 2SC647 - Communica [Part No: 2SC647]
Brand: Communica
SKU: 2SC647
Price: 4.69 ZAR
Availability: InStock

SKU: 2SC647

BRAND: Communica

R 5.39_{(inc VAT)}
R 4.69_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

N 80V 80V 5A 20/30 TO3 Transistor

Transistor Silicon NPN

Specifications

Case	TO3
Vbr CBO	80
Vbr CEO	80
Max. PD (W)	50
Max. hFE	30-
Min hFE	20
Ic Max. (A)	5.0
@Ic (test) (A)	4.0
Icbo Max. @Vcb Max. (A)	10m
Polarity	NPN
R(sat) (Û)	320m
Derate Above 25°C	666m
Trans. Freq (Hz) Min.	300k
Oper. Temp (°C) Max.	140
@VCE (V)	4.0
Pinout Equivalence Number	3-14
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	50 W
Maximum Collector-Base Voltage \|Vcb\|	80 V
Maximum Collector-Emitter Voltage \|Vce\|	80 V
Maximum Emitter-Base Voltage \|Veb\|	5 V
Maximum Collector Current \|Ic max\|	5 A
Max. Operating Junction Temperature (Tj)	150 °C
Transition Frequency (ft):	1 MHz
Forward Current Transfer Ratio (hFE), MIN	20

Additional Information

Device

Transistor

Discover the powerful 2SC647 NPN transistor, designed for high-performance applications with a maximum collector current of 5A and voltage ratings up to 80V. With exceptional reliability and efficiency, this transistor ensures optimal performance in your electronic projects. Upgrade your circuitry with the 2SC647 and experience enhanced durability and functionality.
