2SC940

Name: 2SC940 - Communica [Part No: 2SC940]
Brand: Communica
SKU: 2SC940
Price: 11.50 ZAR
Availability: InStock

SKU: 2SC940

BRAND: Communica

R 13.23_{(inc VAT)}
R 11.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Transistors

Category: NPN General Purpose Transistor

Transistor Silicon NPN

Specifications

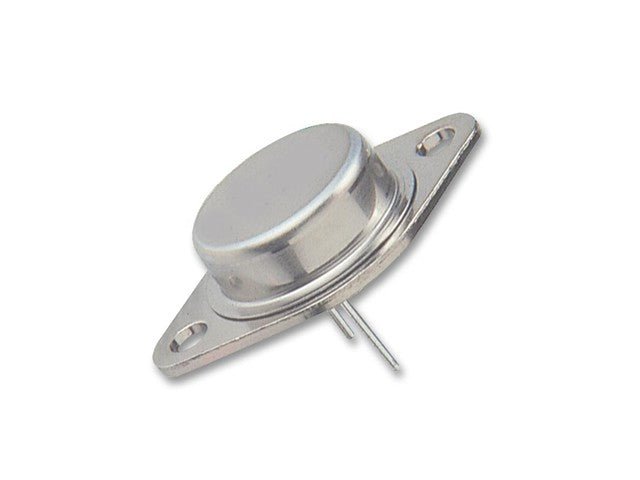

Case	TO3
Vbr CBO	200
Vbr CEO	90
Max. PD (W)	50
t(f) Max. (S)	1.0u
Max. hFE	120
Min hFE	15
Ic Max. (A)	5.0
@Ic (test) (A)	5.0
Icbo Max. @Vcb Max. (A)	2.0m
Polarity	NPN
Derate Above 25°C	400m
Oper. Temp (°C) Max.	140
@VCE (V)	5.0
Pinout Equivalence Number	3-14
Surface Mounted Yes/No	NO
Maximum Collector Power Dissipation (Pc)	50 W
Maximum Collector-Base Voltage \|Vcb\|	200 V
Maximum Collector-Emitter Voltage \|Vce\|	90 V
Maximum Emitter-Base Voltage \|Veb\|	7 V
Maximum Collector Current \|Ic max\|	5 A
Max. Operating Junction Temperature (Tj)	150 °C
Forward Current Transfer Ratio (hFE), MIN	15

Additional Information

Device

Transistor

The 2SC940 NPN transistor delivers reliable performance with a maximum collector current of 5A and power dissipation of 50W. Ideal for high-frequency applications, it ensures durability with an operating temperature up to 140°C. Enhance your electronic projects with this versatile, robust component that guarantees efficiency and stability.
