2SK1117

Name: 2SK1117 - Communica [Part No: 2SK1117]
Brand: Communica
SKU: 2SK1117
Price: 12.25 ZAR
Availability: OutOfStock

SKU: 2SK1117

BRAND: Communica

Sold Out
R 14.09_{(inc VAT)}
R 12.25_{(ex VAT)}

Collections: Semiconductors

Type: Transistors

Category: N Channel Mosfet Transistor

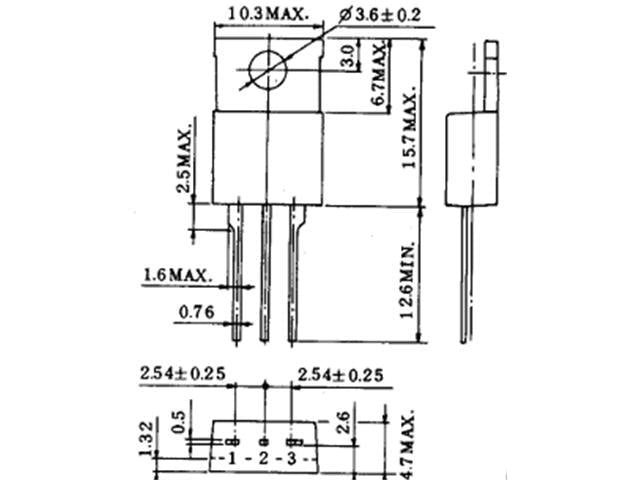

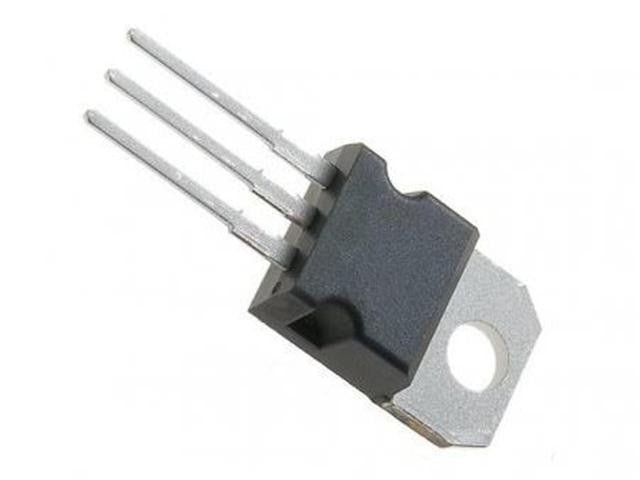

SIP MOS N-CH 600V 6A 100W 1.25R TO220

Transistor N Channel MOSFET

Specifications

Pd- Maximum Power Dissipation: 100 W
|Vds|- Maximum Drain-Source Voltage: 600 V
|Vgs|- Maximum Gate-Source Voltage: 20 V
|Id| - Maximum Drain Current: 6 A
Tj - Maximum Junction Temperature: 150 °C

Electrical Characteristics

|VGSth|- Maximum Gate-Threshold Voltage: 3.5 V
tr- Rise Time: 25 nS
Coss - Output Capacitance: 250 pF
RDSon - Maximum Drain-Source On-State Resistance: 0.95 Ohm

Downloads

Datasheet - 2SK1117

Additional Information

Device

Transistor

Unlock superior performance with the 2SK1117 N-Channel MOSFET, featuring a robust 600V rating and 6A current capacity. Designed for high-efficiency applications, it ensures optimal power dissipation of 100W and minimal on-state resistance for reliable operation. Elevate your circuit design with this high-quality transistor, perfect for demanding electrical applications.
