310-87-164-41-001

SKU: 310-87-164-41-001

BRAND: Communica


In Stock
R 47.15 (inc VAT)
R 41.00 (ex VAT)

Collections: Connectors, Prototyping Products

Type: PCB Connectors

Category: PCB Sockets

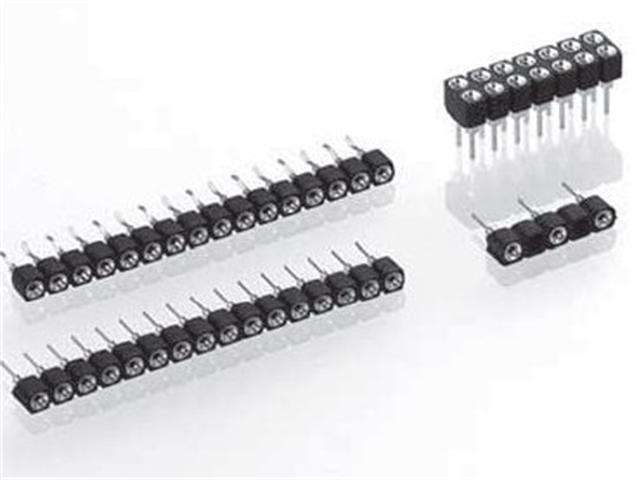

2.54mm PCB Strip Socket Connector • 64 way in Single Row • Straight Pins Solder Tail • Tin/Gold flash Plated

Overview

Features

Specification



  • INSULATOR : Black glass filled polyester PCT-GF30-FR
  • FLAMMABILITY : UL 94V-0
  • SLEEVE : Brass CuZn36Pb3 (C36000) ; Plating : Tin
  • CONTACT CLIP (4 FINGER) : Beryllium copper (C17200) ; Plating : Flash Gold
  • MATING PIN Ø : 0.40 to 0.56 mm
  • FORCES : 2N typ. insertion 1N typ. withdrawal (polished steel gauge Ø 0.43 mm)
  • MECHANICAL LIFE : Min. 500 cycles
  • RATED CURRENT : 3A
  • CONTACT RESISTANCE Max. 10mΩ
  • DIELECTRIC STRENGTH : Min. 1’000 VRMS
Gender Socket
No. of Contacts 64
No. of Pins 64
Termination Straight Pins Solder Tail
Pin Plating Tin/Gold flash
Size 2.54mm
Row Positions Single Row
