3RH2131 - 1BB40 - Industrial Automation - 4011209848450

3RH2131-1BB40

Name: 3RH2131-1BB40 - Communica [Part No: 3RH2131-1BB40]
Brand: Siemens
SKU: 3RH2131-1BB40
Price: 831.94 ZAR
Availability: OutOfStock

SKU: 3RH2131-1BB40

BRAND: Siemens

Sold Out
R 956.73_{(inc VAT)}
R 831.94_{(ex VAT)}

Collections: Electromechanical

Type: Industrial Automation

Category: Power Contactor

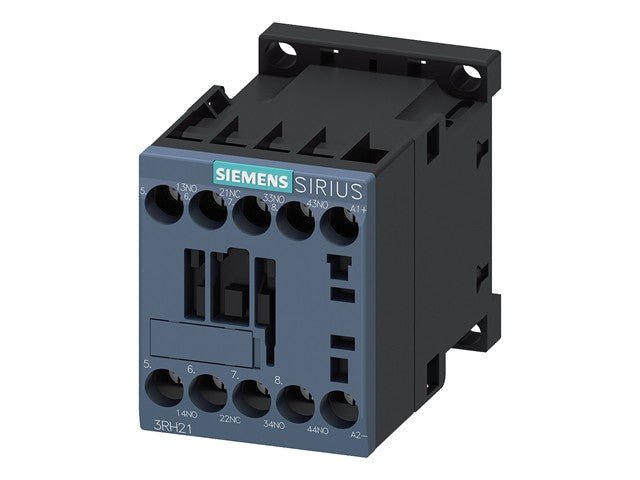

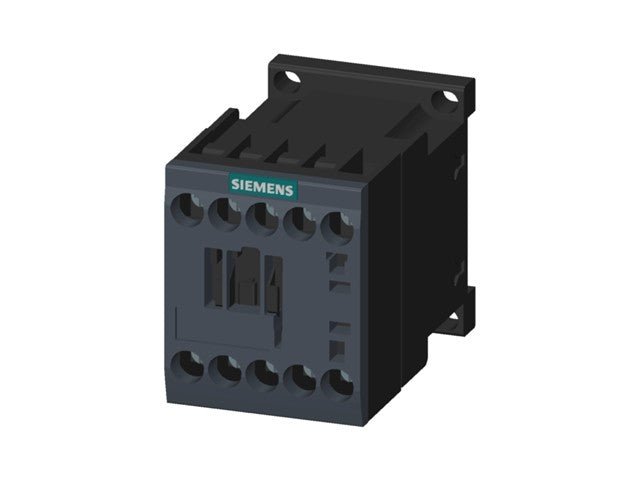

Contactor Relay, 3 NO + 1 NC, 24 V DC

Contactor Relay

Specifications

Product Name Siemens: SIRIUS Contactor Relay
Model Number: 3RH2131-1BB40
Series: 3RH2
Function: Contactor relay (auxiliary contactor)
Contact Configuration: 3 NO (normally open) + 1 NC (normally closed) auxiliary contacts
Coil / Control Voltage: 24 V DC
Frame Size: S00
Rated Operating Current (Ie): ~10 A (AC-15 at 230 V) and approx 3 A at 400 V AC
Insulation Voltage (Ui) : 690 V (degree of pollution 3)
Surge (Impulse) Withstand Voltage (Uimp): 6 kV
Power Loss (Typical): ~4 W at rated current
Mechanical Service Life: ~30 000 000 switching cycles
Electrical Service Life: With auxiliary switch: ~10 000 000
Control Circuit / Actuation: DC 24 V coil
Connection Type: Screw terminals
Mounting: Screw / snap-on (35 mm DIN rail)
Protection Class (Front): IP20
Operating Temperature: –25 °C to +60 °C
Storage Temperature: –55 °C to +80 °C
Shock Resistance: Rectangular DC: 10 g / 5 ms & 5 g / 10 ms; Sine DC: 15 g / 5 ms & 8 g / 10 ms
No-Load Switching Frequency: ~10 000 cycles/hour (AC & DC)
Weight: ~0.27 kg

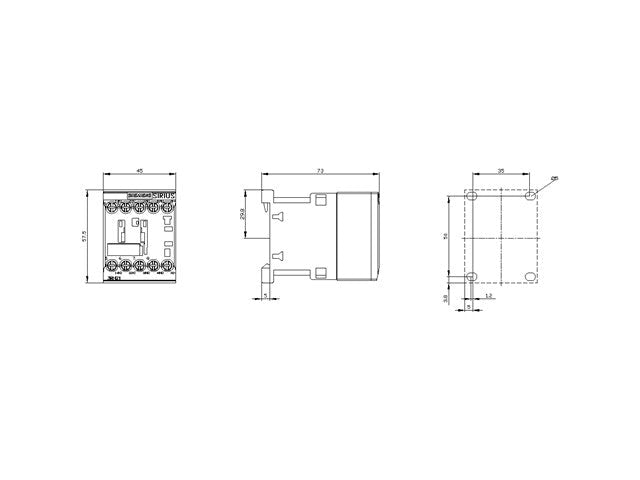

Dimensions (approx.): ~45 × 73 × 57.5 mm (W×D×H)
Standards / Compliance: IEC/EN 60947 series

Downloads

Datasheet

Additional Information

Device	Relay
Type	Contactor \| Relay
