3RK1107-1BQ40-0AA3

SKU: 3RK1107-1BQ40-0AA3

BRAND: Siemens

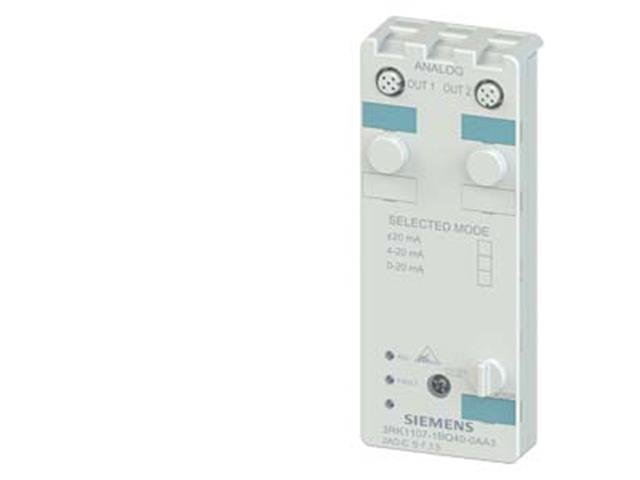

Siemens AS-i Compact Module K60 Analog 2 AQ, IP67 2 x 1 Output, Current 0..20 mA, 4..20 mA, +/- 20 mA for 2-Wire Actuators 2 x M12 Socket (Mounting Plate 3RK1901-0CA00 must be ordered separately)

AS-i Compact Module

Specifications

  • General technical data
  • Design of the product : analog I/O modules for operation in the field, IP67 - K60
  • Type of device : analog output modules for current values
  • Type : 2 outputs
  • Design of the slave type : analog slave
  • I/O configuration : 7
  • ID code : 3
  • Type of electrical connection of the inputs and outputs : M12 screw-type terminals
  • Consumed current from profile conductors of the ASInterface at 30 V maximum : 160 mA
  • operating voltage according to AS-Interface spezification : 26.5 ... 31.6V
  • Current consumption when connected
  • 2 current actuators max : 24mA
  • Profile : 7.3
  • Measuring/output value : current
  • Measuring/output range : adjustable: 4 ... 20 mA / +-20 mA / 0 ... 20 mA
  • Channels active : 1 and 2
  • A/D resolution for analog inputs/outputs : 12 bit

Inputs

  • Number of analog inputs : 0
  • Number of analog outputs : 2
  • Output quantity : mA
  • Product function Parameterizable output variable : Yes
  • Output quantity
  • Current signal : Yes
  • Status display
  • AS-Interface : green LED
  • FAULT : red LED


Ambient conditions

  • Ambient temperature
  • during operation : -20 ... +60 °C
  • during storage : -40 ... +85 °C
  • Protection class IP : IP67

Mechanical data

  • Width : 60 mm
  • Height : 152 mm
  • Depth : 29 mm
  • Mounting type : standard rail mounting/wall mounting using mounting plate for K60 compact module

Downloads

Additional Information

Device Module
Type AS-i | Compact
